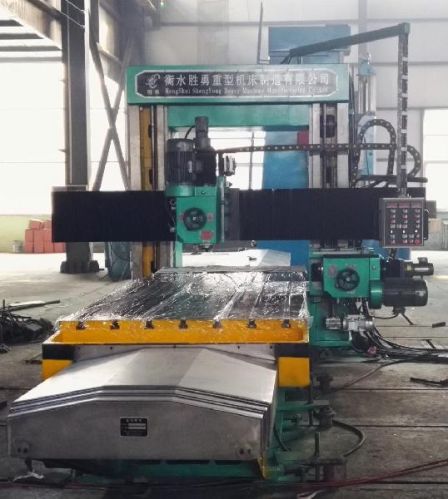

Double Column Planer Milling Machine

Double column planer milling machine can process a variety of materials Horizontal plane, vertical plane, bevel, T-slot, circular groove, combination of rail and rack, etc.
Double column milling machine adopt advanced supersonic hardening process to ensure long life service. All of castings are through aging and vibration aging treatment to guarantee stability. Column adopts box-type structural column.Double column milling machines have flexible operation and larger processing diameter. Double column milling machine is the best processing equipment for mechanical processing and repairing.
Technical specification of Double column planer milling machine X2130
Maximum workpiece size: Long 6000
Maximum workpiece size: Width 3100mm
Maximum workpiece size: Height 1400mm
Table speed 30-1500mmmin
Number of milling head 2
Power of Milling head 5.5kw7.5kw
Number of Side head 1
Power of Side head 5.5kw
Beam lifting speed 570mmMinute
Machine maximum volume: Long 13000mm
Machine maximum volume: Width 5400mm
Machine maximum volume: Height 3800mm
