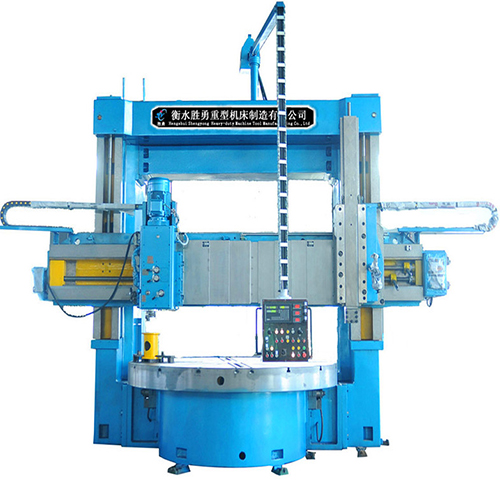

Double Column Vertical Boring Mills Lathe Machine CK5263

Product name : Double column vertical boring mills lathe machine CK5263
Features of Double column vertical boring mills machine CK5263
Vertical boring mills lathe machine adopts module design,is suitable for turnings cylindrical surface, conical surface, end face . Grooving, drilling,tapping and reaming etc process machining can also be carried out.
Vertical Boring Mills VTL machines have the conventional type and CNC type. The conventional type is represented as [C52-" and NC type represented as [CK52-". The conventional type lathe machine is driven by three-phase AC motor and 16 speed range could be obtained by a 16 speed vertical shafting mechanism,while the main transmission of NC type is driven by vector frequency system and a continuously variable speed range could be obtained by 2 steep vertical shafting mechanism.
Technical specification of Double column vertical boring mills lathe C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 315036504150 mm
3 Maximum Weight of workpiece 5080100 t
4 Table diameter 45005750 mm
5 Speed range of table 0.5-50rmin
6 Maximum torque 1 60KNmin
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×
