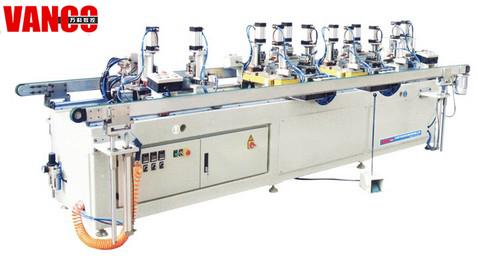

Double Cross Four Point Welding Machine

We are offering double cross four point welding machine for pvc window and door shs4b-120shs3b-120
function:
used for cross welding of the complex windows system. It can accomplish double cross-welding of window beam, and the welding between beam and frame.
Features:
1. The welding speed is six times comparing with traditional welding which makes the produce significant exaltation of efficiency.
2. Welding accomplished in one time, welding corner strength is increased largely.
3. Welding form is selectable and flexible with movement system of welding head.
4. Super rigidity structure design to ensure the welding stability.
5. Welding head adopts high precision square linear bearing motion pair with compact structure and high precision.
6. Cross-welding head adopts the feeding way of synchronous ensures the high strength of welding corner.
7. Using fixture plate to ensure the high precision positioning, completely meet the criterion of european welding standard.
8. Electricalpneumatic components such as cylinders, solenoid valves, and plc and low-voltage apparatus are all selected strictly, which ensures high reliability.
9. Unloading system could work separately or cooperatively.
10. Especially suitable for complex cell window welding, and high quality requirement finished window product.
Technical parameter:
air pressure: 0.5~0.7mpa
air consumption: 100lmin
power supply: 380v50hz
input power: 6.5kw
welding height: ≤90mm
welding width: ≤90mm
min. Welding pane: 550mm
dimension: 4020mm*820mm*1340mm (l*w*h)
weight: 1200kg
