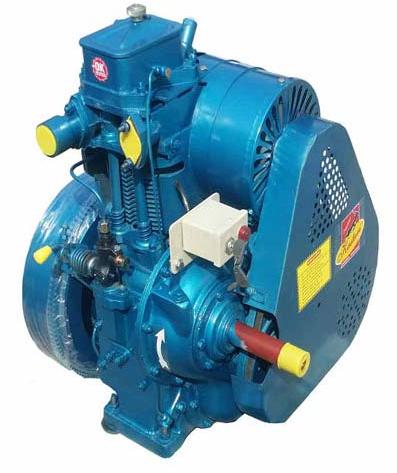

Double Cylinder Air Cooled Diesel Engine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Positioned amidst the celebrated names in this domain, we are instrumental in presenting perfectly designed and engineer precision Double Cylinder Air Cooled Diesel Engine. The Petter Single Air Cooled Diesel Engines are strictly designed under the strict supervision of industry professionals and experts having rich knowledge. Owing to our commitment and sheer dedication, we are capable of delivering Air Cooled Diesel Engines (Double Cylinder) that are in accordance with the set norms. We have trustworthy shipping facilities to deliver the same.

View More Details

Send Enquiry

Specifications

Product Name	KPA-DB15	KPA-DB16	KPA-DB20	KPA-DB25
Full name	87.5MM 15HP AC Twin Cyle. Bush GT	95MM 16HP AC Twin Cyle. Bush GT	102MM TV-2 Double Bush GT AC	114.3MM TV-2 Double Bush GT AC
Model Name	KPA-DB15	KPA-DB16	KPA-DB20	KPA-DB25
Bore	87.5MM	95MM	102MM	114.3MM
Stroke	110	110	116	116
Cubic Capacity (CC)	661	780	947	1189
No of Cylinder	Double	Double	Double	Double
Compression Ratio	16.5:1	16.5:1	0.67	16.5:1
Rated Speed RPM	1500	1500	1500	1500
Injection Method	DI	DI	DI	DI
Horse Power	15HP	16HP	20HP	25HP
Max.torque NM @ RPM	5.97	7.64	5.97	5.97
Method of Starting	Handle	Handle	Handle	Handle
Engine Cooling Method	Air Cooled	Air Cooled	Air Cooled	Air Cooled
Oil Sump Capacity	5 LTR Mini - 7 LTR Max	5 LTR Mini - 7 LTR Max	5 LTR Mini - 7 LTR Max	5 LTR Mini - 7 LTR Max
Grade Of Oil	SAE 40	SAE 40	SAE 40	SAE 40
Fuel Tank Capacity	20 LTR	20 LTR	20 LTR	20 LTR
(L x W x H) in mm	770 x 550 x 885	770 x 550 x 885	800 x 580 x 889	850 x 600 x 889
Engine Weight (Dry) with Fiting Exclusive pkg	270	275	310	325
Engine Gross Weight	365	370	375	390
