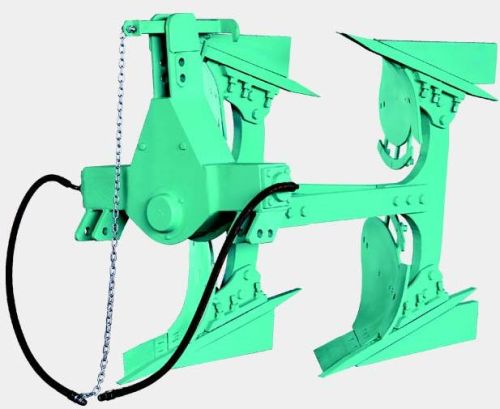

Double Cylinder Reversible MB Plough

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are a well-known Manufacturer and Supplier of Double Cylinder Reversible MB Plough. The Double Cylinder Reversible MB Plough is a one of its kind implement in the market, owing to its intelligent design and excellent functioning. We offer Double Cylinder Reversible MB Plough that directly mounted on a tractor, hence proving easy to handle and time-saving. Another beneficial attribute of the Double Cylinder Reversible MB Plough lies in its hassle-free performance, apart from the fact that it comes with a double cylinder system.

View More Details

Send Enquiry

Product Details

Specifications

Model	URP DC-40	URP DC-45	URP DC-50	URP DC-55	URP DC-75
Size	2 Furrow	2 Furrow	2 Furrow	2 Furrow	2 Furrow
Frame	100 mm X 25 mm Box 100 mm Round	100 mm X 25 mm Box 100 mm Round	100 mm X 25 mm Box 100 mm Round	100 mm X 32 mm Box 100 mm Round	100 mm X 32 mm Box 100 mm Round
Tyne	28 mm (C-Type)	30 mm (C-Type)	32 mm (C-Type)	40 mm (C-Type)	40 mm (C-Type)
Width	47 Inch	47 Inch	48 Inch	49 Inch	49 Inch
Height	48 Inch / 51 Inch	48 Inch / 51 Inch	48 Inch / 51 Inch	48 Inch / 51 Inch	48 Inch / 51 Inch
Blade	14 mm	14 mm	14 mm	14 mm	14 mm
Mould Board	8 mm	8 mm	10 mm	10 mm	12 mm
Shovel (Point)	32 mm X 25 mm	32 mm X 25 mm	40 mm X 25 mm	40 mm X 25 mm	40 mm X 25 mm
Bearing	33019 (2 Nos.)	33019 (2 Nos.)	33019 (2 Nos.)	33019 (2 Nos.)	33019 (2 Nos.)
Adjusment	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Distance Between Tyne	9.5 Inch	10 Inch	11 Inch	12 Inch	12 Inch
Depth of Cut	18 Inch	18 Inch	18 Inch	18 Inch	18 Inch
Weight Aprox	450 Kgs.	465 Kgs.	520 Kgs.	550 Kgs.	600 Kgs.
Power Required (hp)	40 hp - 45 hp	40 hp - 45 hp	50 hp - 55hp	55 hp - 60hp	65 hp - 75hp
