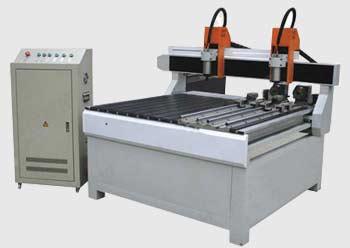

Double Cylindrical Cylinder Engraving Machine, Brand Name : RODEO

₹ 3.62 Lakh / 21000 21000 Set

MOQ1 Set(s)
Packaging TypeAS YOUR NEED
Brand NameRODEO
Spindle power1.5KW
Maximum engraving speed8m/min,
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Packaging TypeAS YOUR NEED
Brand NameRODEO
Operating voltageAC220V/50HZ
Maximum operating speed10m/min
Maximum engraving diameter100mm
engraving range:100mm * 2 × 1200mm
Working waystepping
Spindle power1.5KW
Machine Weight750KG
Spindle speed0 - 24000rpm / min
Maximum engraving Length1200mm
Z-axis travel120mm
Maximum engraving speed8m/min,

We are offering double cylindrical cylinder engraving machine. Products:
1.1 with the german double-nut screw, imported guide rail.
1.2 the use of the breakpoint memory, guaranteed in the accident (cutting knife) or the next day, plus.
Saved 1.3 unique multiple workpiece origin.
1.4 gantry moving. Durable long does not deform, so that the more precise positioning accuracy.
The 1.5 spindle motor 1.5kw water-cooled spindle power and long life.
This machine is suitable for architectural models, furniture industry, schools, enterprises and institutions use.
Performance parameters: engraving range: 100mm * 2 × 1200mm
z-axis travel: 120mm
maximum engraving diameter: 100mm
maximum engraving length: 1200mm
maximum operating speed: 10mmin
maximum engraving speed: 8mmin,
operating voltage: ac220v50hz
spindle power: 1.5kw
spindle speed :0 - 24000rpm min
working way: stepping
machine weight:
750kg
