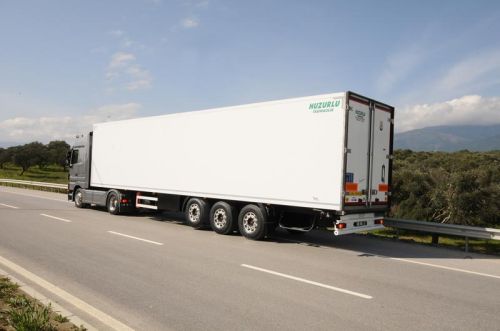

Double Deck Refrigerated Trailer

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are instrumental in manufacturing, supplying, and exporting the premium quality Double Deck Refrigerated Trailer. The Double Deck Refrigerated Trailer, we provide, is an excellent system to use....

View More Details

Send Enquiry

Product Details

We are instrumental in manufacturing, supplying, and exporting the premium quality Double Deck Refrigerated Trailer. The Double Deck Refrigerated Trailer, we provide, is an excellent system to use for transportation of foodstuffs and perishable goods (HACCP), due to the track profile which can efficiently and easily be cleaned (hygienic). The aluminum captive decking beams in Double Deck Refrigerated Trailer are adjustable in height per 21,5 mm. We provide this Double Deck Refrigerated Trailer in various track lengths and patron of pitches as per the requests from the clientâ��s side. Highlights :

Most safe system in the market
Locking system tested over more than 10.000 cycles
Excellent low friction sliding action
Beam level â��Microâ�� adjustment with 21, 5 mm pitch
Micro adjustment maximizes load capacity
Height indicators for easy beam level positioning
Easy to clean track (HACCP)
Special height indicators on the track make beam level positioning easy
Several ways of mounting : Rivets, Glue, Screws.

Accessories : Food storage box, 9 lt fire extinguisher cupboard, 50 lt water tank, 400 lt fuel tank, quarter type mudguards, wheel chocks, double spare wheel holder, foldable rear ladder

Specifications

Overall Length / Internal Length	13.600 mm / 13.380 mm
Overall Width / Internal Widths	2.600 mm / 2.470 mm
Overall Height / Internal Height	3.000 mm / 2.800 mm
Tare weight (without cooling unit)	7 650 kg
King Pin load	10.000 kg
Axle load (technically possible)	24.000 kg
Perm. total weight (technically possible)	34.000 kg
Brakes	Wabco EBS 2S / 2M with RSS - Double circuit brake system with Alu air tanks according to EC
Axles and Suspension	BPW or SAF Intradisc - 3 x 9 ton axles with air suspension
Tyres	6+1 tubeless tires 385/65 R 22,5 trademark MICHELIN or BRIDGESTONE
Rims	6+1 piece rims size: 22,5 x 11,75
Electrical System	24 volts lighting system with 2 x 7 + 15 pin socket according DIN ISO 1185/37312
Chassis	Chassis and other metal parts made of strong special steel(ST52)
Landing Gear	German Made Mechanical Landing Gear-24 ton capacity
Reflective Marking	ECE regulation No: 104 -Side panels with white color, rear side of the vehicle marked with red color reflective band
Floor	2,5 mm thick single piece Aluminium (5086 H244 ) floor top on 24 mm resine coated brich plywood planks permissible fork-lift axle load of 5.460kg according to DIN EN 283
Body Construction	Sides, front wall and roof made of one Single piece insulated polyurethane sandwich panels covered on both sides with 2 mm FRP. (Color is white)
Wall Thickness	Front Wall: 105 mm Side Wall: 65 mm Roof Wall: 85 mm Floor Wall: 125 mm Rear Door: 85 mm
Rear Door	The rear door is a two piece construction with stainless steel frame, each door is fitted with 4 stainless steel hinges on either side, external-locking assembly. All doors are provided with rubber flap type seals.
