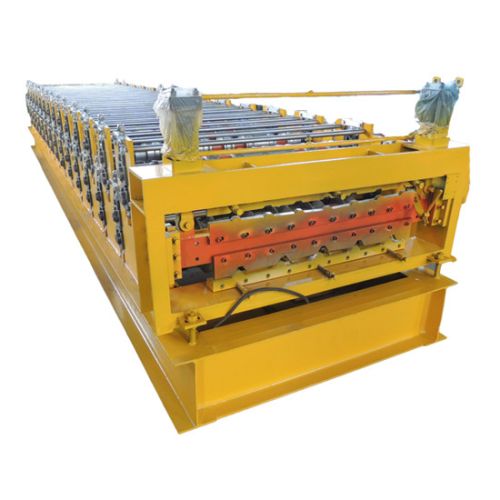

Double Deck Roll Forming Machines

Double deck roll forming machines double deck roll forming machines is one machine that controled by plc,it is easy to operate and can produce steel sheet depend on the profile drawing ,the normal feeding width of it is 1000mm ,1200mm,1250mm,adn we can also design depend on your requirement .and you can also provide your specification of the machine ,we will give you a satisfied offer specifications: feeding material: ppgi thickness of the plate:0.3-0.8mm feeding width:10001200mm machine size: 6200mmx1700mmx1400mm diameter of the axle :donwn-φ80mm up-φ90mm rolling material: 45#  rolling galvanization thickness:0.05 mm rolling stages:14-15 stages  productivity:10-12mmin total power:5.5kw +3kw voltage:380v 60hz 3phase or as requirement   weight:about 4.5t base frame:350h steel side board thickness:16mm cutting blade: cr12 with heat treatment cutting system: hydraulic cutting system after forming control cabinet: plc and frequency changer in it  warranty:12 months limited warranty delivery: 30 days after receipt of advance payment package: plastic packing and nude in the container payment term: tt, lc, trade assurance images: produce process flow components 1. Cutting mechanism it adopts hydraulic drive and automatic location to decide the dimention and cut the target products. Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine. Stop to cut , post cut 2. Roll-forming mc: roller mareial:
