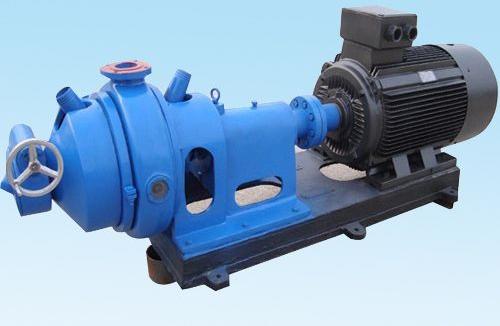

Stainless steel Double Disc Refiner For Paper Pulp

we are offering double disc refiner for paper pulp.
double disc refiner for paper pulp
1.disc dia.:350,380,450,500,550,600,660,720,900,1100mm
2.capacity:6-800tpd
3.pulp consistency:2-5%
zdp series dd refiner
technical parameters:
1.model: zdp-380, 450 550 660 etc
2.diameter of disc plate: φ380
3.rotary speed of disc plate:980 rpm
4.capacity:6-25 td
5.inflow pressure:0.15-0.25mpa
6.pulp consistency:2-4%
7.diameter of inlet: 65*2
8.diameter of outlet: 80
9.motor power:37kw kaiyuan
10.type of pulp inflow: pumping
11.pressure type: manual
12.qty. of disc plate: 4 pcs
material description:
material of main body is ci or carbon steel.
material of blade is low nickel alloy.
main shaft:40cr quenching and tempering.
bearing: zwz, hrb, lyc
