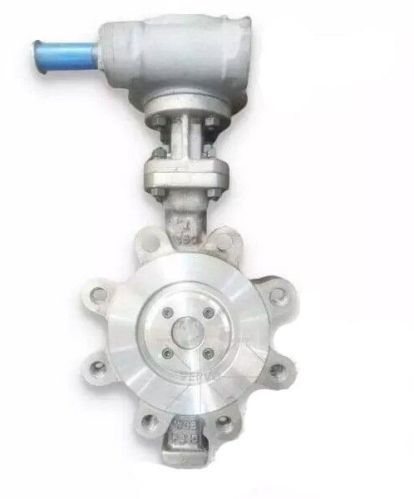

Double Eccentric Butterfly Valve, ASTM A351 CF8M, 4IN, CL150

Get Latest Price

MaterialASTM A351 CF8M
Size4 Inch
Pressure RatingPN20
BodyCasting Steel
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Weldon Valves

Diglipur, Andaman, Andaman & Nicobar Islands

View Number

Member Since 6 Years
Nature of Business Exporter
Year of Establishment 2017

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialASTM A351 CF8M
Size4 Inch
ShaftStainless Steel
Design StandardAPI 609
Work PressureHigh Pressure
BodyCasting Steel
Class150 LB
Pressure RatingPN20

As a leading factory specializing in valve manufacturing, we present the Double Eccentric Butterfly Valve. This high-performance valve, adhering to API 609 standards, is crafted from casting stainless steel ASTM A351 CF8M. With a 4-inch size, DN100 dimensions, Class 150 LB rating, and PN20 pressure, it is ideal for various applications.

Design Criteria	Flange Standard	Face-to-face Length Standard	Test Standard
Design Criteria	Flange Standard	Face-to-face Length Standard	Test Standard
GB/T 12238	GB/T 9113	GB/T 12221	GB/T 13927
EN593	EN1092	EN558	EN12266-1
API 609	ASME B 16.5, ASME B 16.47B	API 609, ASME B 16.10	API 598

o U) CLASS150	DN	L	D2	D3	f	n-M	ISO5211	Nm	Weight	CV	H	H1	H2
	2"(DN50)	43	120.7	92.1	2	4-5/8-11UNC	F07	24	5	65	64	162	40
	2.5"(DN65)	46	139.7	104.8	2	4-5/8-11UNC	F07	35	6	113	70	172	40
	3"(DN80)	48	152.4	127	2	4-5/8-11 UNC	F07	47	7	172	85	182	40
	4"(DN100)	54	190.5	157.2	2	8-5/8-11 UNC	F07	75	10	385	92	208	40
	5"(DN125)	57	215.9	185.7	2	8-3/4-10UNC	F07	112	12	658	117	222	40
	6"(DN150)	57	241.3	215.9	2	8-3/4-10UNC	F10	169	16	1050	150	272	40
	8"(DN200)	64	298.5	269.9	2	8-3/4-10UNC	F10	325	30	2180	187	307	60
	10"(DN250)	71	362	323.8	2	12-7/8-9UNC	F12	558	48	3280	215	337	60
	12"(DN300)	81	431.8	381	2	12-7/8-9UNC	F14	1200	75	5100	252	380	80
	14"(DN350)	92	476.3	412.8	2	12-1-8UNC	F16	1620	90	5800	287	405	80
	16"(DN400)	102	539.8	469.9	2	16-1-8UNC	F16	2130	100	9287	317	468	80
	18"(DN450)	114	577.9	533.4	2	16-1 1/8-8UN	F16	3100	150	11400	347	485	90
	20"(DN500)	127	635	584.2	2	20-1 1/8-8UN	F16	4000	210	13800	380	510	90
	22"(DN550)	154	692.2	641.4	2	20-1 1/4-8UN	F25	5200	250	17000	430	575	90
	24"(DN600)	154	749.3	692.2	2	20-1 1/4-8UN	F25	5800	300	21600	452	605	90

CLASS300	DN 2"(DN50)	L	D2	D3	f	n-M	ISO5211	Nm	Weight	cv	H	H1	H2
	DN 2"(DN50)	43	127	92.1	2	8-5/8-11UNC	F07	70	7	65	64	162	40
	2.5"(DN65)	46	149.2	104.8	2	8-3/4-10UNC	F07	95	9	113	70	172	40
	3"(DN80)	48	168.3	127	2	8-3/4-10UNC	F07	112	13	172	98.5	197	40
	4"(DN100)	54	200	157.2	2	8-3/4-10UNC	F07	146	16	385	120	222	40
	5"(DN125)	59	235	185.7	2	8-3/4-10UNC	F07	248	23	658	165	250	60
	6"(DN150)	59	269.9	215.9	2	12-3/4-1OUNC	F10	378	30	1050	178	264	60
	8"(DN200)	73	330.2	269.9	2	12-7/8-9UNC	F12	852	38	1895	215	323	60
	10"(DN250)	83	387.4	323.8	2	16-1-8UNC	F14	1390	80	3050	252	358	60
	12"(DN300)	92	450.8	381	2	16-1 1/8-8UN	F16	2200	110	4800	286	414	80
	14"(DN350)	117	514.4	412.8	2	20-1 1/8-8UN	F16	3450	160	5395	324	456	90
	16"(DN400)	133	571.5	469.9	2	20-1 1/4-8UN	F25	4080	250	7900	345	510	90
	18"(DN450)	149	628.6	533.4	2	24-1 1/4-8UN	F25	5920	350	10086	405	550	110
	20"(DN500)	159	685.8	584.2	2	24-1 1/4-8UN	F25	7900	450	11300	435	580	120
	22"(DN550)	181	743	641.4	2	24-1 1/2-8UN	F25	10500	530	13000	480	610	150
	24"(DN600)	181	812.8	692.2	2	24-1 1/2-8UN	F25	11800	610	16980	50
