Double Fluid Variable Grouting Pump

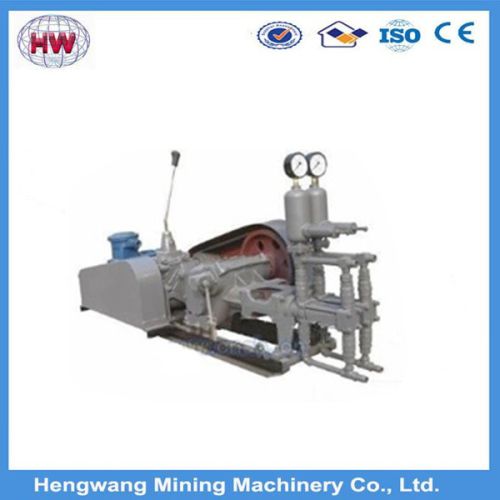

We are offering Zbsb3-0.510-15 Coal Mine Double Fluid Variable Grouting Pump.
ZBSB3-0.510-15（original ZBSB-52-810-15) Double fluid grouting pump, pulp out synchronization function in the field of double liquid grouting, especially in the case of instantaneous initial setting of chemical grouting exerting significant results.
In the subway, tunnels, Bridges, metal and other projects, all have good performance. Both single-fluid grouting, also can double fluid grouting (Cement and sodium silicate).
ZBSB series double fluid grouting pump in the range of 1:1～1:0.5, have grade mix slurry ratio.
Model 2ZBSB-3.6~0.55-11 2ZBSB-3~0.510-15 2ZBSB-148~234-15 2ZBSB-8~1.16-22
rated pressure 5MPa 10MPa 4MPa 6MPa
specified discharge 3.6、2、1.1、0.5
m3h 3、1.8、1、0.5
m3h 148、84、44、23Lmin 8、4.4、2.4、1.1
m3h
motor power 11kw 15kw 15kw 22kw
Weight 400kg 450kg 510kg 570kg
Dimensions 2160×670×1100mm 2200×800×1100mm 2200×800×1100mm 2200×800×1100mm
