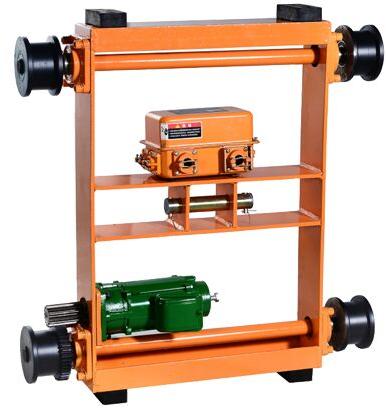

Iron Double Girder Trolley, Brand Name : ramhoist

We offer Double Girder Trolley.
Features
� High and safety Working Performance
� Precision move and stop smoothly
� Easy to install and dismantle
� Easy to change parts when broken
� Compact body, small size and top beauty
� Low noise and power consumption
� Smooth operation and independently driven
� Reasonable design, strong rigidity
Capacity 1Ton-16Ton
Usage Double girder crane
Drive Mode Motor
Power Supply 220v-700v, 5060 Hz, 3 phase, single or dual voltage
Wheel Four-wheel
H.S. Code 84314999
Package Plywood case
SGTC series Double Track Power Trolley is a traversing apparatus to be used for double girder bridge crane (overhead crane), it hangs fixed type electric chain hoist, or wire rope hoist, and trverse in the double girder.
Which is also called Double girder trolley, Double rail trolley, it is without control.
For big capacity crane with double girder, we must use double track power trolley to connect double girder and electric hoist.
Electric powered trolley is consist of metal frame, bumpers, wheel, and driven motor.
Traveling speed can be customized by adopting different motors. It adopts geared motor with buffer, make sure it operates with soft-starting, begin and stop smoothly.
It could be 3:1, or 4:1 ratio of high speed to low speed.
�Respective dollies in the system are independently driven.
��Multipe control mechanism, able for centralized control, scattered control, or distributed control measures, and the dollies are able to perform full automatic operations according to the set program.
Detailed Description
1. Rubber buffer
