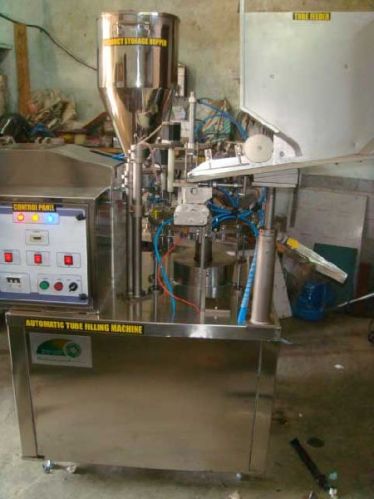

Double Head Aluminium Filling Crimping Machine

Listing ID #3872400

Get Latest Price

\r\n Production Speed Control\r\n\r\n Variable speed control Suitable VFD Drive makes DELTA.\r\n
\r\n Production Counter:\r\n\r\n Activate Sensor with Electrical Logic Display 6 mm. Size, 6 Digital Counter.\r\n
\r\n Indexing Device of Turret:\r\n\r\n Manifold Indexer unit\r\n
\r\n Trimming device:\r\n\r\n NA\r\n
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

\r\n Motor:\r\n \r\n 1. HP; 1440 RPM 3Ph. 440V AC. Standard Make\r\n
\r\n Machine System Description:\r\n \r\n Manual Tube Feeding, ‘I’ Mark Orientation, Filling, Crimping, Batch Coding and filled Tube Ejector Automatically.\r\n
\r\n Model:\r\n \r\n BLENZOTF-70AL\r\n
\r\n All Pneumatic components:\r\n \r\n FESTO-GERMANY Make.\r\n
\r\n Product , Contact Part:\r\n \r\n Stainless Steel 304 or 316 grade\r\n
\r\n Hopper:\r\n \r\n 45 Kg capacity (Working Volume 40 Kg).\r\n
\r\n Gear Box:\r\n \r\n Suitable Gear Box Ratio 30-1 Make PREMIUM/P.G. Drive with Separate Drive.\r\n
\r\n Production Counter:\r\n \r\n Digital Six Digit Production Counter.\r\n
\r\n M/c. Dimensions :\r\n \r\n (L) 900 x (W) 1200mm x (H) 2450mm.\r\n
\r\n Machine security:\r\n \r\n Overload clutch for centering and micro switch cut-off system.\r\n
\r\n Production Speed Control\r\n \r\n Variable speed control Suitable VFD Drive makes DELTA.\r\n
\r\n Filling Volume setting:\r\n \r\n Cam for Valve operation as well Fine Tuning adjustable Control System.\r\n
\r\n Tube Orientation Device:\r\n \r\n Top Drive (Photocell Unit) Make Std. and Stepper Motor & ‘I’ Mark Sensor DETALOGIC Make. At the separate station.\r\n
\r\n Filling device:\r\n \r\n Positive suction & displacement PISTON type\r\n
\r\n Aluminium Tube Crimping Unit\r\n \r\n Pneumatic Operated- Festo-Germany Make\r\n
\r\n Production Counter:\r\n \r\n Activate Sensor with Electrical Logic Display 6 mm. Size, 6 Digital Counter.\r\n
\r\n Cooling Water :\r\n \r\n NA\r\n
\r\n Change Part :\r\n \r\n Piston Pump Housing of 30gms to 100 gms, , Tube Holder Cups, Filling Nozzle,\r\n
\r\n Tube ejection:\r\n \r\n Automatic Filled Tube ejection at separate station.\r\n
\r\n Filler Pump:\r\n \r\n (5 Gms. to 30 Gms.) or (30 Gms.to 100 Gms.) or (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order.\r\n
\r\n M/c. Weight Approx:\r\n \r\n Overall Wt. Approx. 500 Kgs.\r\n
\r\n Empty Tube in feeder:\r\n \r\n Casset type\r\n
\r\n Machine:\r\n \r\n Fully-Automatic Rotary 12 Stations Double Head Tube Filler with Crimper\r\n
\r\n Filling Capacity:\r\n \r\n Machine is suitable for 5 gms to 200 gms with inter changeable filler piston pump.\r\n
\r\n Machine Entire frame:\r\n \r\n Fabricated in Machine Entire frame Mild Steel With Powder Coated & will be in hard Chrome plated & duly ENP coated and all other cams and levers will be in graded casting & alloy steel. With all side covers in S.S.-304.\r\n
\r\n Respect to tube Dia. & tube height maximum:\r\n \r\n Tube Diameter max. 40mm, & Tube height max. 200mm.\r\n
\r\n Output per Minute:\r\n \r\n Up to 70 Tubes/ Min. In Single Hopper One Nozzle (depending on the Fill sizes).\r\n
\r\n Indexing Device of Turret:\r\n \r\n Manifold Indexer unit\r\n
\r\n Compress Air :\r\n \r\n Client to Provide Instrument Quality Moisture Free Air supply for Smooth Filling Machine Function the Continuous Air to be supplied at Site: 6 Kgs. / Sq. Cm. Pressure At 10 CFM Max.\r\n
\r\n Folding Unit\r\n \r\n 2-3 Folds as desired ,Pneumatics operated-Festo-Germany Make\r\n
\r\n Power Input:\r\n \r\n 1KW\r\n
\r\n Input Power :\r\n \r\n 3 - 4 kW. at Site: 3 Phase/ 415V. ±15%, / 50Hz. ±5%, and Neutral. \r\n (As applicable)\r\n
\r\n Filling Accuracy:\r\n \r\n ± 1%.\r\n
\r\n No tube - No Fill Device:\r\n \r\n Activate Sensor with Electrical Logic Control system.\r\n
\r\n Control Panel:\r\n \r\n Necessary functional features like emergency stop, re-set, inching, and user friendly, Electrical logic system are standard with the machine, with interlock & indication on the main operator’s of panel to Electrical logic Control.\r\n
\r\n Trimming device:\r\n \r\n NA\r\n
\r\n Product, To Fill & Seal:\r\n \r\n Oinments, Creams, Honey, Balms, Pastes etc\r\n
