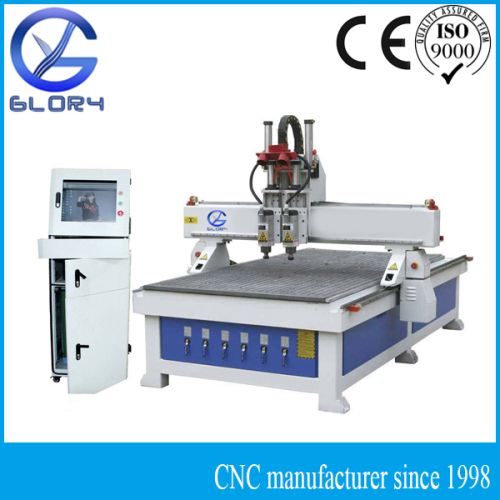

Double Head CNC Router Machine

We are offering double head cnc router machine,
highlight:
asynchronous multi-head cnc machine is customized for changing the tools within 2-4 pieces. It's not only economic, also can realize auto tool change, save the time of manual tool change and improve the working speed and precision.
Key features:
1. Seamless steel lathe bed
2. Dsp controller
3. Two 4.5kw hsd spindles
4. Each spindle can use different tools, which equals to a simple atc cnc
5. Re-carving function after power failure
6. Vacuum table with t-slot
7. France small electric parts
ideal for:
1. Timber
2. Mdf
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Specification gy-m1325as2
working area
(x axis) 1300mm
working area
(y axis) 2500mm
clearance (z axis) 200mm
spindle 4.5kw hsd air-cooled
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
linear guide taiwan hiwin
drive system
(z axis) germany ball screw
drive motors yaskawa servo motors
inverter fulingdelta
driver yaskawa
command g code
cutter diameter φ3.175-φ12.7mm
maximum travel speed 35mmin
table top vacuum table with t-slot
controller dsp
power requirements 3-phase 380v50hz
custom sizes and upgrades for the components are available on request.
Optional parts:
1. Rotary axis
2. Alignment pop-up pins
3. T-slot table
4. Heavy duty lathe bed
5. Different power requirements
6. Gantry up to 300mm
7. Weihongsyntec operating system, etc.
