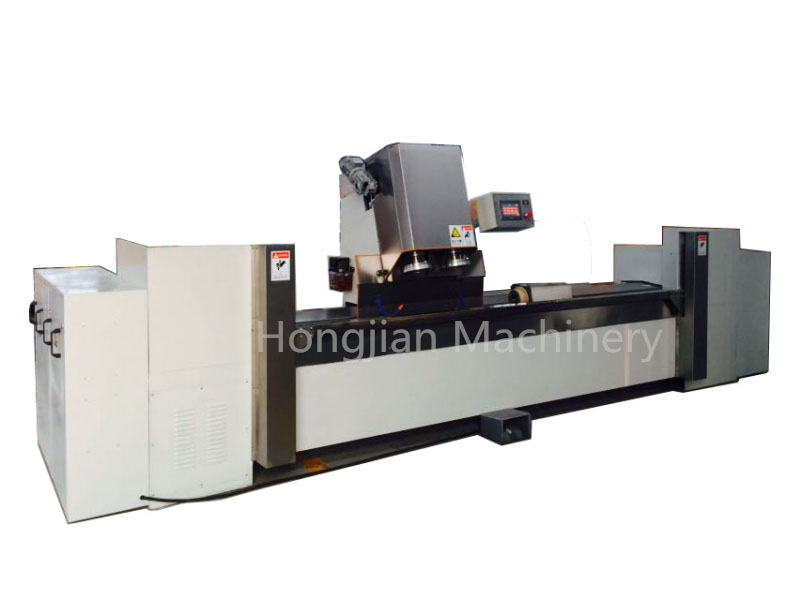

Double Head Grinding Machine Rotogravure Cylinder Finishing Machine Grinding Stone Copper Polishing Machine

HJ-YMJ Copper Grinding Machine is a self-developed automatic numerical control model. The grinding performance is stable and efficient. It adopts the Germany electronic parts, fully ensuring the quality and long service life of the machine.

Main Technical Parameters:

Cylinder diameter: φ108-350 mm

Cylinder length: 400-1300 mm

Cylinder rotation speed: 60-300 rpm

Grinding head to-and-fro speed: 520-800 mm/min

Grinding head up/down speed: 300 mm/min

Grinding head rotation speed: 500-1100 rpm

Pressure adjustment range: 0-60 kg

Max.cylinder weight: 150 KG

Customer Responsibility: Air compressor(2kg/cm2)

The parameters can be adjusted as customer requires


FEATURES:

1. The grinding stone has good rotation and tenacity.
2. The grinding head has flexible lifting and reliable movement.
3. The grinding head has reliable guiding, stable operation, good resilience, which is ensured by the professional spring machine.
4. The good multiple-pulleys are provided by reliable factories.
5. The axle of head box uses the traditional structure and the rotating parts uses the imported precise double bearings, ensuring the precise rotation and superior performance.
6. The dead centre is the anti-sliding one, preventing rollers when grinding.
7. The live centre is highly precise one, ensuring rotating precision.
