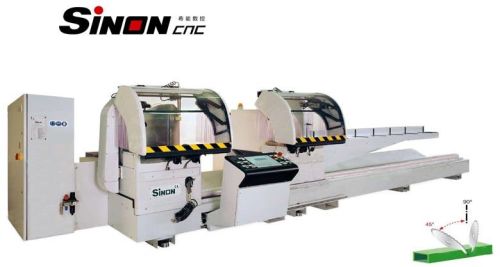

Double Head Precision Cutting Saw CNC

We are offering double head precision cutting saw cnc processing performance and features
1.used for aluminum, upvc and curtain-wall profile accurate and efficient cnc cutting.
2.adopts industry grade computer system, closed-loop controlled, high precision and quick shift for cutting size
3.optimized function: optimizing to cut according to the working list.
4.tabulation cutting function: several kinds of profiles can be selected quickly.
5.automatic angle cutting change in 45° and 90°.
6.saw blade rotates smoothly due to high accurate main spindle, steady running with high precision
7.high precision linear guiding pair ensured steady and long-term processing accuracy.
8.hydraulic cylinder ensured the stable speed adjusting and saw blade working.
9.the middle profile supporter and movable carrier make the loading convenient.
10.safety system of shield can ensure the safe operation of man working
11.carbide saw blade for a high quality cutting and life.
technical parameter:
motor power
2×2.2kw
motor rotary speed
2800r/min
saw blades length
450~4200mm
air consumption
200l/min
saw blade height max
300mm×90° 200mm×45°
saw blade width
max 135mm
cutting angle
90°,45°,
feeding speed
stepless timing 0~3m/min
saw blade specification
φ500mm×4.4mm×φ30mm z=120
dimension
6000mm×1750mm×1905mm
weight
2000kg
