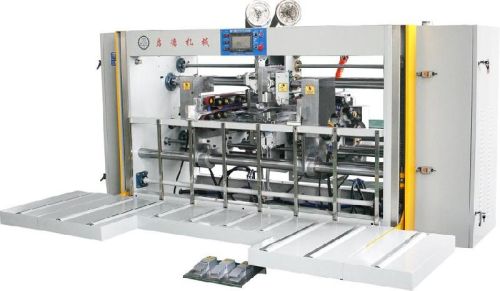

Double Head Stitching Machine, Brand Name : qide machinery

Box stitching machine,two head stitcher, single piece stitching,two piece joint stitcher,semi auto stitcher,cardboard stitching machine,
1. Adopt import double servo control system
2. Applied single, double and irregular corrugated carton stitching
3. Available for single, double and strengthen nail
4. Suitable for 3,5,and 7-layer carton boxes
5. Operating sizes are adjusted by computer, running errors showed on the screen
6. Automatic counter ejector and bundle sheaves of cartons to make working efficiently
7. Stitching pitch from 30-120mm adjusted by computer
yxd-040 1800mm box stitching machine,two piece joint stitcher,semi auto stitcher,cardboard stitching machine, (special equipment for color carton)
specification for box stitching machine,two piece joint stitcher,semi auto stitcher,cardboard stitching machine,
specification yxd-040
1800mm
max.sheet size(a+b)×2 3600mm
min.sheet size(a+b)×2 1060mm
max. Sheet lenght 1650mm
min. Sheet lenght 350mm
max. Sheet width 900mm
min. Sheet width 150mm
min. Sheet height 400mm
stitching pitch 30-120mm
no. Of stitching 1-99 stitches or more
machine speed  500 stitchesminute
power required 10 hp
machine length 4000mm
machine width 3400mm
machine weight 4000kg
stitching type single, double, tie stitching:"" ," " ," "
max. Stopper measurement 600mm(c)
max. Ts width 45mm(e)
min. First stitch pitch 25mm(d) without cover
