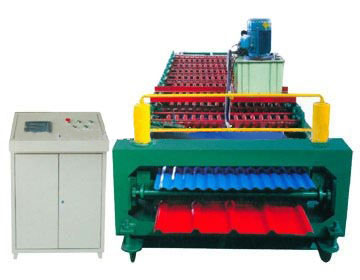

DOUBLE LAYER COLOR STEEL ROOF PANEL ROLL FORMING MACHINE

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

• Low-cost, High-quality • Double Layer Roof Panel Roll Forming Machine • Wall roll forming machine • Roof panel machine • The Chart of Process flow : Decoiling feeding....

View More Details

Send Enquiry

Company Information

SANTKRUPA ROLLING SHUTTER

Nana Varachha, Surat, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

•	Low-cost, High-quality
•	Double Layer Roof Panel Roll Forming Machine
•	Wall roll forming machine
•	Roof panel machine

•

The Chart of Process flow : Decoiling feeding Rolling Forming Measure length Cut to length Product packaging

•

The introduction of equipment : Manual decolier,main forming machine,automatic cutter,electric controlling system,hydraulic system,product supporter

•

Technical specifications Main forming machine

•	Material of shafts: 45 steel termping and harding treatment. Outer diameter 70mm-80mm Material of rollers: 45 steel, plating hard chrome on the surface, rigidity HR55°-57°
•	Main motor power:4kw
•	The speed of forming:9-12m/min
•	Stand:350 steel welding
•	Material thickness:0.3-0.7mm
•	Wall plate thickness: 14mm
