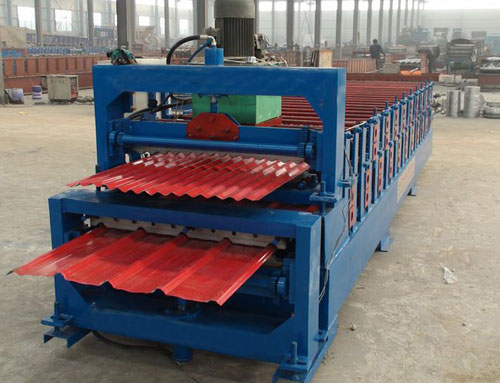

Double Layer Roll Forming Machine

we are offering double layer roll forming machine. hebei xinnuo double layer roll forming machine uses the newest double design, one machine product two profiles, cover small area, easy to transport, cost savings. our after-sales service is perfect, and we can special design and manufacture according to user requirements, at the same time, guide the users production, installation, debugging and maintenance. the client can choose any two profiles, we can design the machine according to your requirement. equipment components: manual decoiler, main machine for roll forming, forming cutter, hydraulic system, plc control, run-out tablemain parameters: 1. control system: automatic plc frequency control, text screen 2. roller steps: 911 3. main power: 4kw 4. pump power: 4kw 5. diameter of roller: î¦72mm 6. productivity: 8-12mmin 7. feeding width: 1000mm 8. effective width: 850840mm, tolerance â±1100 9. thickness of the plate: 0.35-0.6mm 10. dimension of main roll former: 7600mmã�1300mmã�1450mm 11. roller material: 45#steel by cnc-machined heat treatment and buffing, and the thickness of surface plated chromium is 0.05mm. double roll forming machine affordable, two model machines can be synthesized one, which covers an area of, and double cost is much lower than the two single machine, the user is preferred. the new double design using double roll forming machine, a dual-purpose machine, small occupation area, convenient transportation, cost savings. the design and manufacture of special according to user requirements, at the same time, to guide the user, production, installation, debugging and repair.
