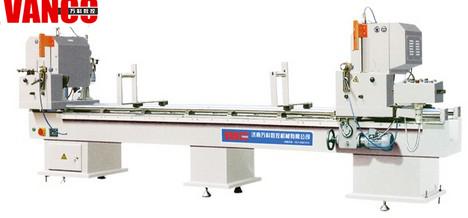

Double Miter Saw For PVC Profile Ljz2-450*3700

We are offering double miter saw for pvc profile ljz2-450*3700
function:
used for pvc and aluminum profile cutting.
Features:
1. Linear bearing system is adopted ensures the accuracy of machine running, cutting and stable performance.
2. Linear bearing system in moving and feeding device ensures the stable cutting flatness of cutting section.
3. Air and hydraulic cylinder ensures the stepless speed and stable saw blade working.
4. Special cemented carbide blade saw ensures the cutting section quality and duration of saw.
5. Automatic cutting angle change form 45° to 90° (optional).
6. One time two pieces of profile cutting (height of profile less then 60mm).
7. Special main spindle with high precision ensures the stable running and high precision processing.
Technical parameter:
air pressure: 0.5mpa~0.8mpa
air consumption: 0.2m3min
power supply: 380v50hz, three-phase five-wire
input power: 4.5kw
spindle revolving speed: 3400rmin
cutting length range: 450mm~4200mm
cutting width: 165mm
cutting height: 365mm
blade saw standard: φ450mm*φ30mm*3.5mm*80t
error in length: ≤0.1mm
cutting angle: 45°, 90° (other angle is optional)
error in angle: ≤5'
dimension: 4700mm*1100mm*1500mm (l*w*h)
weight: 1600kg
