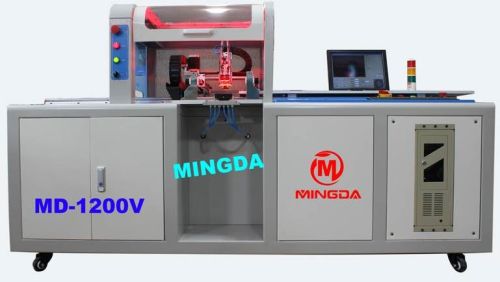

Double Mounting Head Automatic Smt LED Pick and Place Machine

We are offering 1.2m double mounting head automatic smt led pick and place machine.
1 .maximum pcb：1215×315mm
2. x-y maximum range of movement：152×465mm
3 .z-axis range of movement：20mm
4. maximum moving range of working platform1454mm
5. maximum mounting speed: 8600cph
6. average mount speed: 5500cph
7. positioning accuracy: 0.01mm
8. nozzle buffer range: 4.5
9. power supply:220v, 50hz
10. Atmospheric pressure: 0.65-0.75mpa
11. Power:600w
12. Feeders: 8、12、16、24mm feeder
13. Range of application: 0402、0603、0805、1206(3014)、1210(3528)、5050、sot
14. Number of feeders: 6
15. Motor:stepper motor
16. Nozzle number： 2
17. Drive system: high-speed dsp digital high voltage driver
18. Component angle : 0-360°any angle, autosynchronous rotate when moving
19. X-y operation mode:straight-line linkagev201109
20. Air source：positive and negative pressure switch
21. Operating system：independent research and development 201110 version
22. Programmatically: point to point programming, vision programming, pcb file coordinate guide-in
23. Visual programming camera: high pixel color infrared ccd
24. Monitor: 8-inch color high-definition display
25. Weight:350kg
26. Size：218 cm *84 cm *125cm
