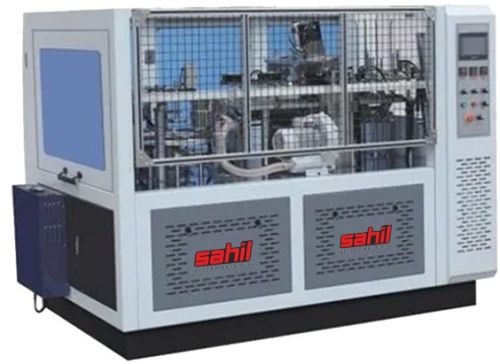

Our DR-750 Double/Ripple Wall Cup Making Machine is equipped with advanced features for efficient production. With a maximum speed of 75 pcs/min and stable operation at 55-60 pcs/min, it ensures reliable output. Featuring auto lubrication and a high-speed open CAM, gear-based mechanism, it 's user-friendly. Suitable for cups from 200 ML to 950 ML and paper thickness from 160 to 350 GSM.
| S NO | MODEL | |
|---|---|---|
| 1 | Automation | High Speed Open CAM, Gear based, Fully Automatic Machine |
| 2 | Lubrication | Auto Lubrication |
| 3 | Maximum Speed | 0-75 Pcs/Min |
| 4 | Stable Speed | 55-60Pcs/Min |
| 5 | Power source | 3 Phase 380V 50Hz |
| 6 | General power | 5.0 kw |
| 7 | Weight | 2200 Kg |
| 8 | Dimension | 2650x1300x1800 MM |
| 9 | Cup Size | 200 ML - 950ML |
| 10 | Maximum Cup Height | 130 MM |
| 11 | Paper Specification | 160-350 GSM |
