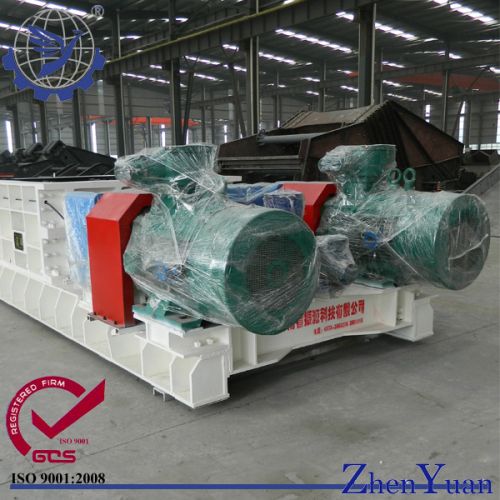

Double Roll Coal Crusher

ZYM Double Roll Coal Crusher
Advanced Design
ZYM Double Roll Coal Crusher is composed of electromotor, connecting cover, reducer, torque-limiting fluid coupling, tooth rollers and the main body
Structures
2PLF series teeth-roller crusher is composed of electromotor,constant-filling fluid,shaft coupling,connecting cover, reducer, toothed rollers, and the main body.
(1) Constant-filling fluid coupling
It is used as connection between the electromotor and reducer, buffering the strike and vibration generated when starting, as well as over load protection.
(2)Connecting cover
The electromotor and the reducer are connected as a wholt by connecting cover,bearing the weight of the motor, protecting constant-filling fluid coupling,and ensure the electromotor and the reducer concentric rotating. Additionally, through the monitoring hole on the cover, working condition of constant-filling fluid coupling could be monitored.
(3)Tooth-roller
Tooth-roller is the key component of crusher, spiral arrangement of teeth. The toothholders and principal axis are assembled using the multiple dove-tail grooves, which enhance the shear strength.Small size materials are sieved out by two tooth-roller which rotate inward synchronously in opposite direction, and the massive materials are crushed by the broken tooth.Broken tooth is casted by adopting special formula which fuses multiple rare elements. It is quenched after processing,make it higher strength as well as toughness,better abrasion resistance
and longer service life.
(4)Shaft coupling
Plum-shaped elastic coupling with high-performance polyurethane are applied,greatly reduce the impact and vibration from tooth-roller to reducer.
(5)Over load protector
Speed detection sensor over load protection ensure safe production. The senor is connected with PLC programmed control monitoring equipment. The electromotor can be manually reversed
to remove blocked material and prevent material being blocked. Distance control can be realized through PLC programmed controller. The running condition can be monitored through control room.
Shearing-crush technogy are utilized,eliminate over crushing. Small volume, light weight, suitable for 1st stage crushing, 2nd stage crushing, 3rd stage crushing in pit, workshop, and open-cut working condition.
Outstanding Features
1.Strong crusher power and high crushing ratio, without over-crushed phenomenon
2.Crushing grades have coarse and medium crushing
3.High strength alloy steel shafts
4.Replaceable wear part design, crusher teeth can be replaced quickly
5.Unique tooth designs to allow maximum utilization of the materials
6.Grease lubricated bearings usually fed by automated system
2PLF-120/250 Double Roll Coal Crusher Technical Datas
Model
Specification 2PLF-120/250
Input Size(mm)
Output Size(mm)
Capacity(t/h)
Single Driven Type Motor Power(kw) 450-560
Dual Driven Type Motor Power(kw) 2*(185-250)
Other Choices
140 Series Grading Teeth-roller Crusher for Coarse Crushing
Model
Specification 2PLF-140/150 2PLF-140/200 2PLF-140/250 2PLF-140/300
Input Size(mm)
Output Size(mm)
Capacity(t/h) 1300-2500 1700-3800 2200-4600 2700-5500
Single Driven Type Motor Power(kw) 315-355 355-450 400-560 450-630
Dual Driven Type Motor Power(kw) 2*(185-280) 2*(200-315) 2*(220-355) 2*(250-400)
120 Series Grading Teeth-roller Crusher for Coarse Crushing
Model
Specification 2PLF-120/150 2PLF-120/200 2PLF-120/300
Input Size(mm)
Output Size(mm)
Capacity(t/h)
Single Driven Type Motor Power(kw) 315-355 355-450 560-630
Dual Driven Type Motor Power(kw) 2*(132-185) 2*(160-220) 2*(200-315)
100 Series Grading Teeth-roller Crusher for Medium Crushing
Model
Specification 2PLF-100/160 2PLF-100/200 2PLF-100/250
Input Size(mm) � 700 � 700 � 700
Output Size(mm) 50-150 50-150 50-150
Capacity(t/h) 280-850 350-1000 500-1500
Single Driven Type Motor Power(kw) 160-200 160-250 200-315
Dual Driven Type Motor Power(kw) 2*(90-132) 2*(110-160) 2*(132-200)
80 Series Grading Teeth-roller Crusher for Medium Crushing
Model
Specification 2PLF-80/150 2PLF-80/200 2PLF-80/250 2PLF-80/300
Input Size(mm)
Output Size(mm) 50-150 50-150 50-150 50-150
Capacity(t/h) 200-600 260-750 300-1000 400-1150
Single Driven Type Motor Power(kw) 132-160 160-200 185-250 250-280
Dual Driven Type Motor Power(kw) 2*(75-90) 2*(90-132) 2*(110-185) 2*(132-220)
60 Series Grading Teeth-roller Crusher for Medium Crushing
Model
Specification 2PLF-60/70 2PLF-60/120 2PLF-60/150 2PLF-60/200
Input Size(mm)
Output Size(mm) 50-150 50-150 50-150 50-150
Capacity(t/h) 80-240 200-600 250-700 300-800
Single Driven Type Motor Power(kw) 37-55 45-90 55-110 75-160
Dual Driven Type Motor Power(kw) 2*(15-37) 2*(18.5-45) 2*(37-55) 2*(45-90)
Widest Applications
Excepet for used in coal, ZYM double roll crusher is also applied in clinker, clay, marl, bauxite, overburden,
limestone, etc. Especially used in coal preparation plant and mobile crusher plant.
Service for our Coal Crusher Machine :
1. Pre-sale services
Act as a good adviser and assistant of clients; Enable them to returns on their investments.
2. Services during the sale
Respect clients; Devote ourselves to improving the total value
3. After-sale services
Provide considerate services to minimize clients' worries.
Our 2PLF coal crusher machine also can be used into underground coal mine
Welcome Your Inquiry About Coal Mine Machinery!
