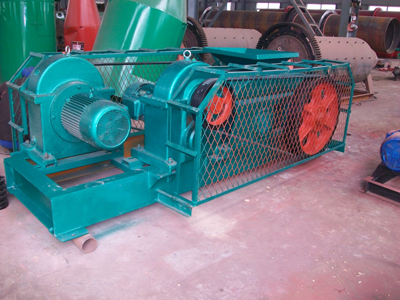

Double Roll Crusher

Main applications of double roll crusher,roll crusher:
Mainly used for the crushing of medium or lower-hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, cement and building materials industrial production.It is widely used in middle and small sized mines for intermediate and fine crashing of the brittle and soft ores of intermediate hardness like coal and coke
Roll crusher Applicable material:
1) Clay
2) Shale clay
3) Coal gangue
4) River silt
Working Principle Of Roller Crusher:
Through the feed opening, the raw materials fall to between the two rollers, after crushed, the final products drop naturally. When there are unbreakable materials or the material is too hard, the roller will concede automatically under the effects of spring and hydraulic pressure, which will widen the clearance between the rollers and make the hard or unbreakable so as to avoid damaging the machine. The clearance between the two rollers can be adjusted to change the sizes of final products.
Feature Of Roller Crusher:
Double roller crusher can adjust the clearance between rollers and drive through triangle belt or multidirectional shaft coupling, and the four roller crusher will do it only through triangle belt.
Model Feeding size(mm ) Discharging size(mm ) Capacity9t/h ) Power(kw) Weight(kg)
2PG-400X250 ≤25 1--8 5-10 11 1500
2PG-610X400 ≤40 1--20 13-35 30 4500
2PG-750X500 ≤40 2--20 15-40 37 12250
2PG-900X500 ≤40 3--40 20-50 44 14000
