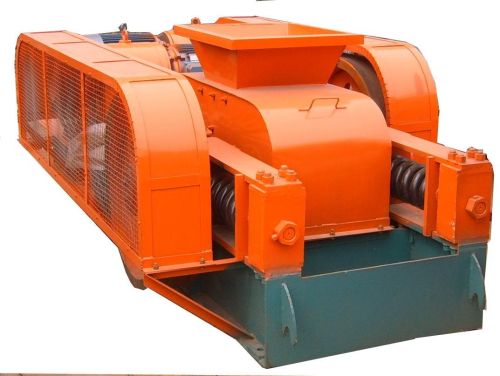

Double Roller Crusher

The double roller crusher can crush materials whose compression strength is not more than 160Mpa.The discharging size is adjustable,and large-size materials can be crushed into different sizes.
In coal industry,double roller crusher can directly crush the raw coal through deironization and decontamination,and there is no need to remove coal gangue.Crushed materials are of small and even size.Thus,the process of coal dressing is simplified and the production cost is reduced.
Working principle
The discharging size is adjustable.Between the two rollers,there are wedge-shape or gasket adjusting device.There are adjusting bolts in the top of the wedge device.When the adjusting bolts lift the wedge upwards,the wedge pushes movable roller away from the fixed roller,so the gap between two rollers becomes big and the discharging size is big.When the wedge moves downwards,gap between two rollers becomes small under the influence of pressure spring.
Discharging granularity is small accordingly.
The gasket device adjusts the discharging size by changing the thickness and quantities of gaskets.The gap between two rollers becomes large when the quantities of gaskets increase,and the gap becomes small when the quantities of gaskets reduce.Drive mechanism adopts two motors which drive triangle belt to drive the rollers to rotate in the opposite directions.When double roller crusher works,materials fall into the gap between rollers through feeding hole.They are compacted and crushed,and then are discharged.
