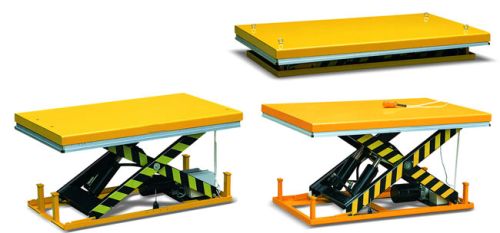

    Double Scissor Lift Table

    Double Scissor Lift Table

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    These models can be used in above-floor or in-floor pit applications.Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
    View More Details
    Send Enquiry

    Company Information

    National Hydraulics
    location Sector 2, Noida, Uttar Pradesh
    View Number
    • calendar Member Since 17 Years
    • building Nature of Business Retailer
    • Year of Establishment 1986

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    ModelCapacityLowered HeightRaised HeightPlatform SizeBase Frame SizeLift TimePower PackNet Weight
     (kg)(mm)(mm)(mm)(mm)(second) (kg)
    HW1101 1000205990820×1300640×124020～25380V/50HZ, AC 1.1kw160
    HW100210002059901000×1600640×124020～25186
    HW100310002401300850×1700640×158030～35200
    HW1004100024013001000×1700640×158030～35210
    HW100510002401300850×2000640×158030～35212
    HW1006100024013001000×2000640×158030～35223
    HW1007100024013001700×15001580×132030～40380V/50HZ, AC 1.1kw365
    HW1008100024013002000×17001580×132030～40430
    HW200120002301000850×1300785×122020～25380V/50HZ,AC 2.2kw235
    HW2002200023010001000×1600785×122020～25268
    HW200320002501300850×1700785×160025～35380V/50HZ,AC 1.5kw289
    HW2004200025013001000×1700785×160025～35300
    HW200520002501300850×2000785×160025～35300
    HW2006200025013001000×2000785×160025～35315
    HW2007200025014001700×15001600×143525～35380V/50HZ,AC 2.2kw415
    HW2008200025014002000×18001600×143525～35500
    HW4001400024010501200×1700900×160030～40380V/50HZ,AC 2.2kw375
    HW4002400024010501200×2000900×160030～40405
    HW4003400030014001000×2000900×200045～50470
    HW4004400030014001200×2000900×200045～50490
    HW4005400030014001000×2200900×200045～50480
    HW4006400030014001200×2200900×200045～50505
    HW4007400035013001700×15001620×140035～45380V/50HZ,AC 2.2kw570
    HW4008400035013002200×18001620×140035～45655
    HW6001600038011501700×10001600×99025～35380V/50HZ,AC 2.2kw
