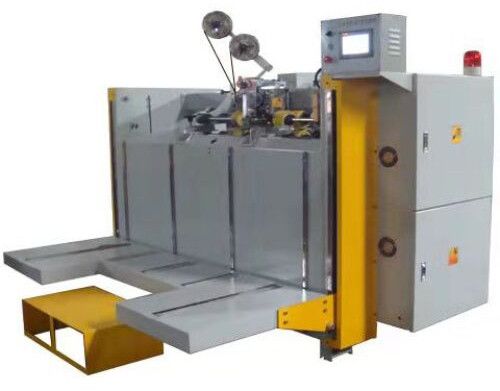

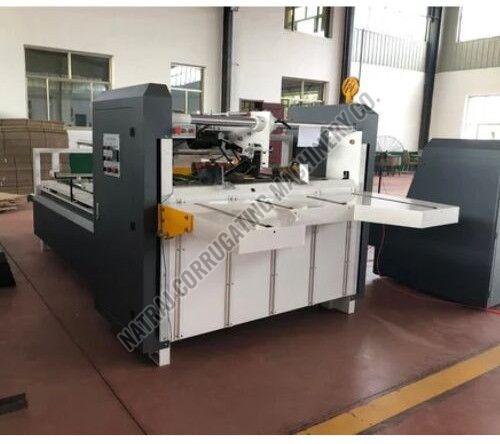

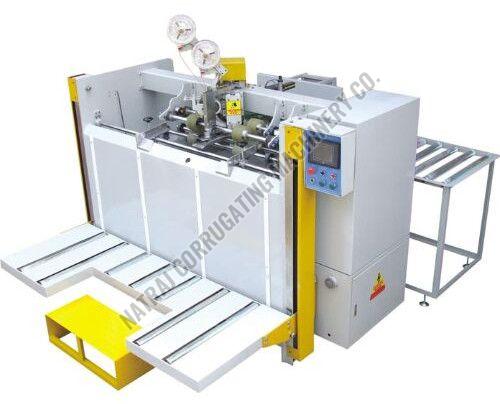

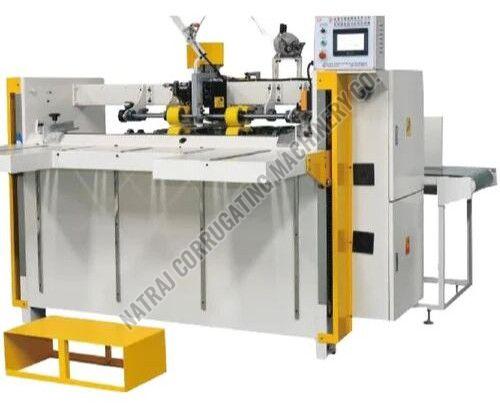

Natraj Nagpal Electricc Double Servo Box Stitching Machine

₹ 14 Lakh - ₹ 18 Lakh / Set

MOQ1 Set(s)
Driven TypeElectricc
Brand NameNatraj Nagpal
CertificationISO
ConditionNew
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

Company Information

Bamni Khera, Palwal, Haryana

4.6/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 06ACJPN8265D1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionNew
ApplicationCarton / Corrugation Boxes
CertificationISO
Country of OriginChina
Power5 Kw
Driven TypeElectricc
Brand NameNatraj Nagpal
After-Sales Service ProvidedYES
Total Carbohydrate1year
ComputerizedYes
box stitching machineSemi Automatic box stitching machine

This Double Servo Box Stitching Machine offers unmatched performance in carton box manufacturing. With a stitching speed of up to 500 nails per minute, it\\\'s designed for high efficiency, flexibility, and ease of use—without requiring highly skilled operators.

Ideal for both single-sheet and double-sheet cartons, it is capable of handling large-size, irregular, or bottomless boxes, making it a dual-purpose, labor-saving solution for modern corrugated box plants.

\r\r⚙️ Key Features:\r

\r
High-Speed Operation
✔ Up to 500 nails/minute, significantly improving production output
\r
\r
Double Servo Drive System
✔ Reduces mechanical transmission parts
✔ Lowers failure rate and maintenance requirements
✔ Ensures smooth and precise stitching
\r
\r
Flexible Nail Settings
✔ Single nail, double nail, reinforced nail options available
✔ Nail spacing adjustable from 0 to 120mm
✔ Up to 99 nails per box
\r
\r
Versatile Box Compatibility
✔ Handles single, double, irregular, and large cartons
✔ Also supports boxes without covers or bottoms
✔ Suitable for 3-ply and 5-ply cartons (7-ply available on request)
\r
\r
Computerized Operation
✔ Touchscreen control panel with real-time fault display
✔ Automatic sheet size adjustment and screw pitch setting
✔ Automatic counting and bundling function
\r
\r
User-Friendly
✔ Requires minimal training to operate
✔ Reduces labor intensity and increases accuracy
\r

\r\r📐 Technical Specifications:\r

\r\r\rModelTJ-DS2400TJ-DS2700TJ-DS3000\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r\r

Max (L+W) × 2	4800 mm	5400 mm	6000 mm
Max Paper Width	1200 mm	1300 mm	1500 mm
Max Paper Length	2250 mm	2550 mm	2850 mm
Min Sheet Length	350 mm	350 mm	350 mm
Min Sheet Height	400 mm	400 mm	400 mm
Nail Span	0 – 120 mm	0 – 120 mm	0 – 120 mm
Nail Count	1 – 99 nails	1 – 99 nails	1 – 99 nails
Max Slotting Nail Length	600 mm	600 mm	600 mm
Mechanical Speed	500 nails/min	500 nails/min	500 nails/min
Power Required	18 HP	18 HP	18 HP
Machine Length	6000 mm	6000 mm	6000 mm
Machine Weight	4000 kg	4100 kg	4200 kg
Max Flap Width (E)	45 mm	45 mm	45 mm
Min First Nail Position (D)	25 mm	25 mm	25 mm
