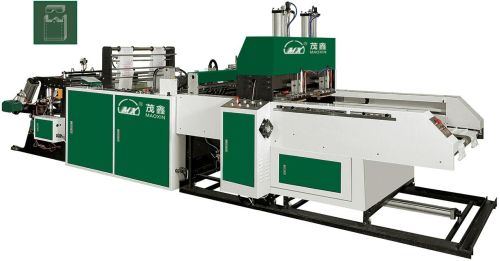

Double Servo Motor

We are offering double servo motor.
Features
* the unit used to produce hdpe, ldpe, pp tube film vest bag. * adopts japanese servo motor control. Taiwan frequency converter speed control. Italian double photocells tracking. * ac motor control feeding frame, matched with the feeding belt brake, pneumatic control, pneumatic shaft, plc liquid crystal display, easy to operate. * the adjustment is convenient, firm sealing stability, using high precision temperature control instrument automatic temperature control. With automatic counting device, the automatic alarm reaches a set number of bags, automatic control stop. * blowing type discharge system, a bag bottom integer design, automatic punching machine adopts hydraulic control, waste centralized conveying collection, easy arrangement, simple operation. Has no material, blanking, plugging the automatic shutdown function. * this machine belongs to high-grade bag making machine, machinery fittings imported high-end accessories, machine overall appearance, durable, relieve from the trouble of maintain and stoppage loss.
Main technical parameters：design and specifications are subject to change without notice.
Model mxrqd-800 mxrqd-1000
width of bag 350mm*2 450mm*2
length of bag 300-600mm 300-600mm
machine speed 200-250pcsmin 200-250pcsmin
power required 7kw 10kw
machine size 7000*1300*1600mm 7200*1560*1600mm
weight 2800kg 3000kg
