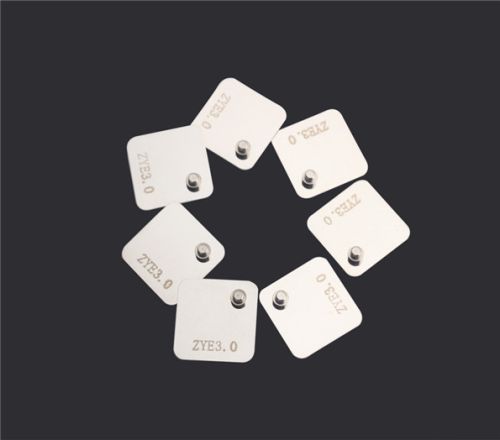

Double Side Guide Pin

SingleDouble-side Guide Pin Pin Series For Positioning Usage Securing board when printing in one side.Double side silk screen & locate use in pin bed making,no need to preset off the board after the first side of the retardant are finished printing,just mke use of the pin bed to set off the PCB then the second side can be printed,save time and improve efficiency. Features Base materials are made by special steel.Special dimension can be produce by custom-made. Parameters TOLERANCE: +0.005-0.02mm SPECIFICATION: Specifications, can be customized. Silk Screen Copper Pin Pin Series For Positioning Usage Use in activities fixed positioning,especially suitable for use in small batch plate wet film. Features Copper material,high precision,small deviations and durability. Parameters TOLERANCE: +0.005-0.02mm SPECIFICATION: Specifications, can be customized. Piercing Pin Pin Series For Positioning Usage Exposure optical imaging graphic transfer special positioning nails in doublemulti-layer printed circuit board. Features Exposure optical imaging graphic transfer special positioning nails in doublemulti-layer printed circuit board. Parameters TOLERANCE: +0.005-0.02mm SHAPE: pointed-end with four sides open SPECIFICATION: Φ5.0×1.2×3.1                  Φ5.0×1.5×Φ3.0                  Φ5.0×1.5×Φ3.15                  Φ6.0×1.4×Φ3.1                  Φ6.0×1.45×Φ3.15                  Φ6.0×1.45×Φ3.175
