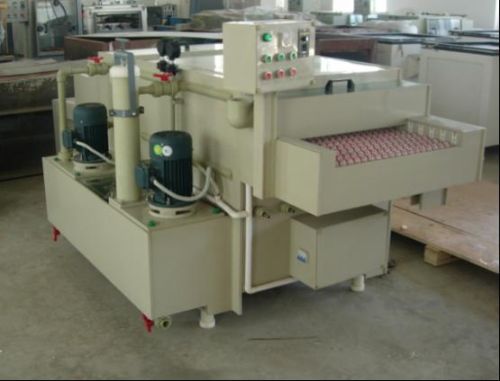

Double Side Spray Etching Machine

We are offering double side spray etching machine.
double side spray etching machine
equipment parameters:
model number: s650
power 4.5kw/380v/50hz
working width 650mm
etching area 650*1000mm
etched type double spraying
working temperature 0~65℃
heat system titanium,3kw
cool system pe cooling pipe,25 meter
vertical pump 2.2kw/220v/50hz
tolerance: 0.05mm
machine size 1990*1350*1250mm
weight about 250kgs
automatic control system:
speed adjust system
pressure ajust system
temperature control system
net filter system
features:
1.accept the special side window sealing structure, avoid liquid & gas over fall.
2.accept corrosion resisting diaphragm gauge individually to control the spraying pressure, control the etching speed from up to down
3.top & bottom spraying pipe at etching section use the advanced alternative arrangement style,reduce the transverse distance between each spray nozzle, increase the spraying contact ratio and even enhance the etching effect obviously
4.simple and convenient operation and could work persistently for a long time
5.the machine is made of pp plate, which is heat-resistant, corrosion-resistant and strain-resistant.
6.timely service, one year warranty, life-long maintenance
7.provide free training for customers in any places.
8.non-standard sizes can be customized according to different business requirements
9.environmental friendly
applications:
it’s mainly used to etch through the metal decoration plates, nameplates ,signs, tags,stencils,gobos,metal crafts and so on
