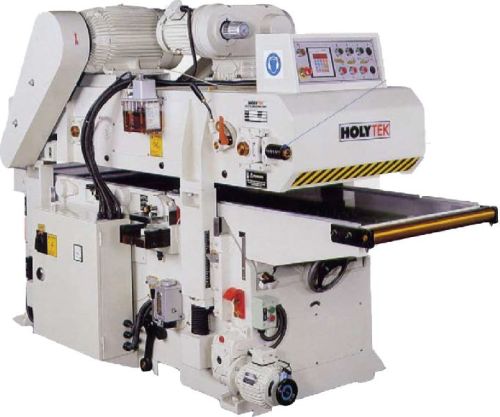

Double Surface Planers

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features The four table rollers provide superior feeding regardless of the type of wood being processed. Standard start – delta motor starter. Quick belt tension adjustment for the bottom....

View More Details

Send Enquiry

Company Information

Wood Tech, Bangalore

Peenya, Bangalore, Karnataka

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features

The four table rollers provide superior feeding regardless of the type of wood being processed.
Standard start – delta motor starter.
Quick belt tension adjustment for the bottom cutterhead.
Reversible feed for last workpiece retraction if an error occurs in the cutting process (for HK-610B, 400)
A hand lubricator is provided of convenient lubrication to the table slideways for HK-610 and auto lubricator provided for caterpillar chain quick-ways.
Heavy duty rigid cast-iron body and table for vibration-free running.
The bottom cutter-heads’s knife can conveniently be set or changed.

Model	HK 400	HK 610B	HK610
Maximum width of plane	405 mm. (16”)	610 mm. (24”)	610 mm. (24”)
Maximum thickness of plane	170 mm. (7”)	170 mm. (7”)	200 mm. (8”)
Minimum width of plane	8 mm.	8 mm.	10 mm.
Minimum length of plane	250 mm.	250 mm.	310 mm.
Number of knives	4 pcs	4 pcs	4 pcs
Knife size	405 x 3 x 30 mm. (16” x 1/8” x 1 1/8”)	610 x 3 x 30 mm. (24” x 1/8” x 1 1/8”)	610 x 6.35 x 38 mm. (24” x 1/4” x 1 1/2”)
Cutterhead diameter	Ø101 mm.	Ø101 mm.	Ø126 mm.
Cutterhead speed (plain knife)	4,000 r.p.m.	4,000 r.p.m.	4,000 r.p.m.
R.P.M. of stepless variable speed	7 – 20 M/min	7 – 20 M/min	7 – 20 M/min
Table surface	19” x 86”	27” x 86”	27” x 103”
Top cutterhead drive motor	10 HP	15 HP	15 HP (20HP)
Bottom cutterhead drive motor	7.5 HP	10 HP	10 HP (15HP)
Feed drive motor	2 HP	2 HP	3 HP
Table elevation motor	1/2 HP	1/2 HP	1/2 HP
Packing dimensions (L x W x H)	2,300 x 950 x 1,850 mm.	2,300 x 1,190 x 1,850 mm.	2,767 x 1,245 x 1,870 mm.
N.W. / G.W.	1,900 / 2,100 kgs.	2,500 / 3,000 kgs.	3000/3500Kgs
