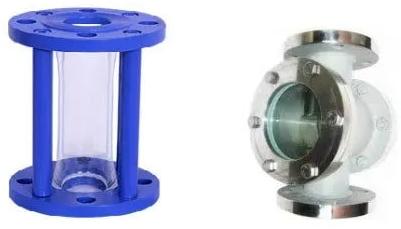

Blue High Pressure Iron Double Window Sight Glass, For Industrial

Other details :

• Glass tubes: Borosilicate buttress
• Nuts-bolts and stud: M.S./S.S. 304, M.S./S.S. 306
• Materials of flanges: WCB/M.S., CF 8/S.S 304, CF 8M/S.S. 316
• Flange standards: A.S.A, 150 RF, A.S.A 300 RF, B.S. 10 table E or F
• Lining (optional): PTFE/PFA/TFE (0.8 TO 1 mm thick)
• Sealing: PTFE (standard)
• Operating temperature: 210° C Max. with PTFE sealing
• Optional sealing material: PTFE envelop with Neoprene insert/viton/silicon
• Flange to flange distance: 100 mm/125 mm/195 mm (+-3 mm)
• Hydraulic test pressure: For size 15 to 50 mm 8 Kg/cm, 2/65 to 100 mm, 5 Kg/cm, 2/150 mm 3 Kg/cm2
