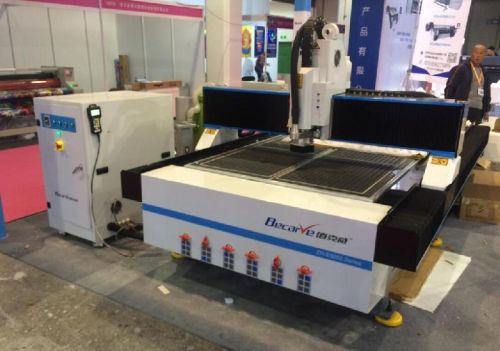

Doublescrew CNC Router Machine, Spindle Power : 5.5Kw Constant power

MOQ1 Unit
Spindle Power5.5Kw Constant power
Availability2600Kg
Maximum feed thickness120mm
Spindle speed0-24000r/min
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Availability2600Kg
Spindle Power5.5Kw Constant power
Software operation environmentWindows98/2000/xp/win7/win8
Dimensions(L*W*H)3760 X 2100 X 1700mm
Maximum speed of running40m/min
CommandG Code*u00*.plt*
Resolution0.005mm
Maximum speed of engraving20m/min
Reposition accuracy0.01mm
X/Y axis travel1300 X 2500mm
Maximum feed thickness120mm
Spindle speed0-24000r/min
Z axis travel120mm
Operating voltageAC380V-50Hz

1. 5.5 kw power spindle
2. Screw drive anti shake system is a national patent certification, in line with the quality requirements of ISO9000 certification
3. Taiwan original TBI or PMI screw transmission, Y axis double ballscrew structure, to ensure higher accuracy
4. Using Taiwan HIWIN guide rail, running smoothly
5. Equipped with 850 watts (W) Kymmene servo motor
6. Equipped with six control vaccum platform
7. Equipped with 7.5 Kw water circulation vacuum pump
8. Guide nut oiling system to extend service life
9. Equipped with original Weihong control system NK105
10. Equipped with our patent products professional cooling chiller
