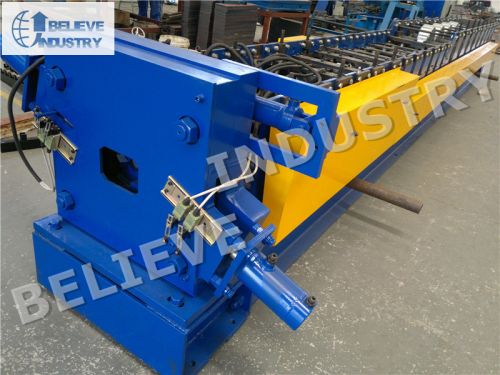

Steel Down Pipe Roll Forming Machine, Brand Name : Believe Industry

₹ 25.34 Lakh / 30000 30000 Set

MOQ1 Set(s)
Raw MaterialSteel
Tile TypeCustomized
Production Capacity60 sets / quarter
Brand NameBelieve Industry
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Power Supply380V, 50Hz, 3 phrase
Tile TypeCustomized
Production Capacity60 sets / quarter
Total Carbohydrate18 months
After-Sales Service ProvidedEngineers available to serve machinery overseas
Brand NameBelieve Industry
ApplicationThis machine is used to produce down pipes.
Raw MaterialSteel
AutomationFully Automatic
Place of OriginChina
Model NumberCustomized

We are offering downpipe roll forming machine.
Description:
this down pipe forming machine is used in manufacturing rectangle or round down pipe with close entrance, and its specific dimension is made at customers' requirements. The main components of this device are decoiler, roll former, cutting device, control cabinet, and pipe bending machine, etc.
technical parameters - downpipe roll forming machine
1. Raw material: carbon steel, galvanized steel, q235
2. Material thickness: 0.4-1.0mm
3. Material width: depend on specific profile
4. Diameter of shaft: 76mm
5. Material of shaft: 45# steel
6. Material of rolls: 45# steel chromed with thickness 0.05mm
7. Main power: 7.5kw
8. Forming speed: 10-15mmin
9. Forming station: 20 stations
10. Cutting type: hydraulic cutting
11. Cutting blade: cr12 mov
