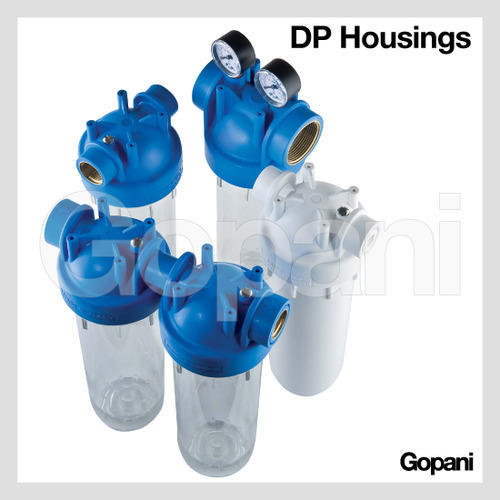

DP Small Filter Housings

Purchasers will not be disappointed buying our range of product, as it adheres to industrial quality regulation systems. From traditional payment methods to modern ones, we are familiar with all of these payment methods. According to the suitability of patrons, we ensure the payment for an order is done conveniently.

Product Description :

• DP is a full range of housings for cartridge height at 5½, 7½, 10½ and 20½, especially designed to fit to both Standard DOE cartridges and to SOE cartridges with 45 mm double O-ring collar.
• Exclusive Mono, Duo and Trio patented and registered models are manufactured with the finest and most advanced materials under constant focus on innovative processing technologies and ceaseless modernization to ensure the absolute quality of our products.
• With female IN/Out configurations from 1/4½ up to 1½1/2, with BSP or NPT threads, with or without brass Inserts. DP housings are suitable for every Point-of-Use (POU) and Point-of-Entry (POE) application, as single- or multi-stage on-line filters, under-sink filters, Reverse Osmosis pre-filtration units.
• A wide range of combinations with clear and opaque bowls and colored heads make it possible to respond to every custom requirement upon minimum quantity. Every housing is provided with FilterFit, the centering device which holds cartridges perfectly standing into the housing.
• DP 10 Mono housings for cartridges 10½ and 20½ are available also as S models with discharge valve and self-cleaning performance. S models can be used with Kit Auto for automatic flushing and self-cleaning.
• A full set of accessories is available on demand to complete the housings kit -  wall brackets for Mono, Duo and Trio models, opening spanner, standing bases and brass or plastic nipples with O-ring.

Working Conditions :

• Max working pressure - 8 bar (116 psi)
• Max working temperature - 45^oC (113^oF)
• Min working temperature - 4^oC (39,2^oF)

Specifications :

• Non-toxic materials, suitable for drinking water.
• Head - reinforced polypropylene.
• Bowl - PET.
• O-ring - EPDM.
• Breather-valve -  body stainless steel, O-ring EPDM. · IN/Out
• Brass threads - CW 614 N brass. Products from Atlas Filtri, Italy
