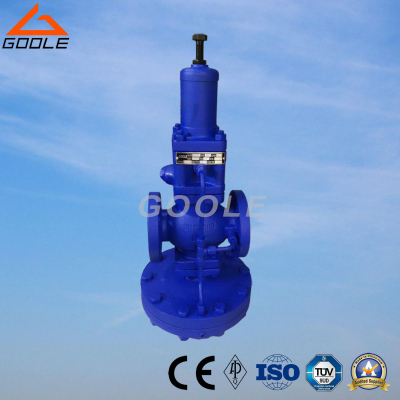

DP27 Pilot Operated Pressure Reducing Valve, Brand Name : GOOLE

Brief Introduction.
DP27 Pilot Operated Pressure Reducing Valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company,similar to Spirax Sarco Design. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.
Note:
A variable rate conical pressure adjustment spring is fitted providing a down stream pressure range of 0.2-17bar g.
Field of Application.
Pressure Rating: 1.6- 2.5 Mpa.
Nominal Diameter: DN15-50 mm.
Body Material: Steel WCB.
Standard Flanges: DIN,ANSI,JIS.
