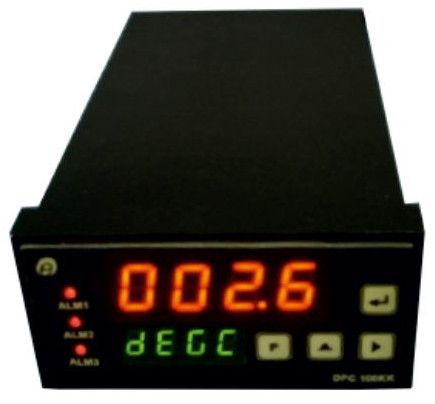

DPC 100KK Dual Display Process Indicator, Power Supply : 90-250 V AC

DPC-100KK Universal Process Indicator & ControllerFeatures

• ON/OFF Controller

• Single Channel Operation

• Software Calibration

• Open Sensor Indication

• Universal Input Compatibility

• Cold Junction Compensation for Thermocouple Input

• Separate Display for Process Value & Engineering Unit

Electronet’s Series DPC-100KK is a universal input Process Indicator / Controller designed for a wide range of industrial applications. It is ideal for monitoring and controlling parameters such as Temperature, Humidity, Pressure, Flow, Speed, and Level.
The measuring range and control points can be easily configured through the front keypad. A dedicated display for engineering units provides enhanced clarity and operator convenience. Control outputs are accessible from the rear terminals.

Type of Control: ON/OFF
No. of Inputs: 1

1. RTD – PT-100 / PT-200 (2 or 3 Wire), Cu-53 & Potentiometric

2. Thermocouple – J/K/R/S/T/B/E Types (Universal)

3. Current – 0–20 mA / 4–20 mA

4. Voltage – 0–5 V DC / 1–5 V DC / 0–10 V DC

• LED Display

• Programmable for mA & Voltage (–1999 to +9999)

• Fixed display for RTD & Thermocouple inputs

• For R, S & B Type TC: ±0.5% of F.S.

• For all other inputs: ±0.25% of F.S.

Open Sensor Indication: Displays “OPEN” for RTD & Thermocouple

• Power Supply: 90–250 V AC

• Power Consumption: <10 VA

• Temperature Drift: <0.01% of F.S. per °C

• Response Time: <100 mSec

Enclosure Options:

1. DIN Standard

2. Field Mount – IP65

3. Flameproof – CMRI IIA IIB Certified

Bezel Size (DIN STD): 48 (H) × 96 (W) × 160 (D) mm
Mounting: Flush Panel Mount / Wall Mount (WP/FLP)
Weight: <500 g (Approx.)

• Operating Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (Non-condensing)
