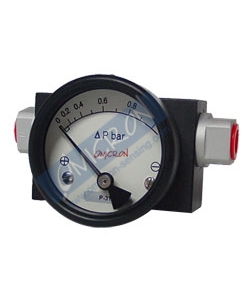

DPG2 : DIFFERENTIAL PRESSURE GAUGE WITH SWITCH

Get Latest Price

Accuracy: ±2% of F.S
Enclosure: SS304
Wetted Parts: SS316L
Model: DPG2
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Omicron Sensing Pvt Ltd

Kalbadevi, Mumbai, Maharashtra

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Accuracy: ±2% of F.S
Wetted Parts: SS316L
Enclosure: SS304
Range: 0 - 700 bar
Media: Wet / Wet
Electrical Rating: 15A, 250V AC
Model: DPG2

Filters, Hydraulic Systems, Water Treatment Plants, Chemical Plants, Natural Gas Processing, Heat Exchangers, Gasoline /Diesel Engine Filters, Pumps & Valves, Compressors.

Special Features :

	Simple and compact design.
	High operating pressure up to 200 bar.
	Over pressure safe from either side to maximum working pressure.
	Indicating mechanism isolated from pressure chamber.

Standard Version: 63mm, 80mm, 100mm, 125mm, 150mm

	Accuracy	: ±3% of F.S.
	Ambient temperature	: - 25°C to + 65°C
	Process temperature	: Max. 80°C
	Static pressure	: Upto 100 kg/cm2 (Optional 200 kg/cm²)

	Case	: AISI 304 SS
	Wetted Parts	: AISI 304 SS, Spring & Screw with Ceramic magnet
	Body	: Aluminium
	Protection	: IP 55
	Dial	: Aluminium, black graduation on white background
	Pointer	: Aluminium, black Coloured, Fixed
	Window	: Acrylic Glass
	Seals	: Buna-N
