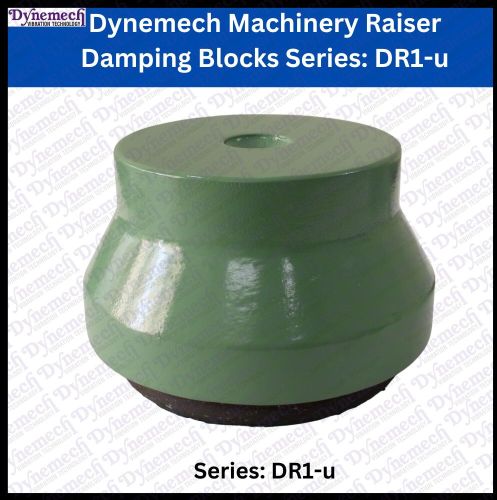

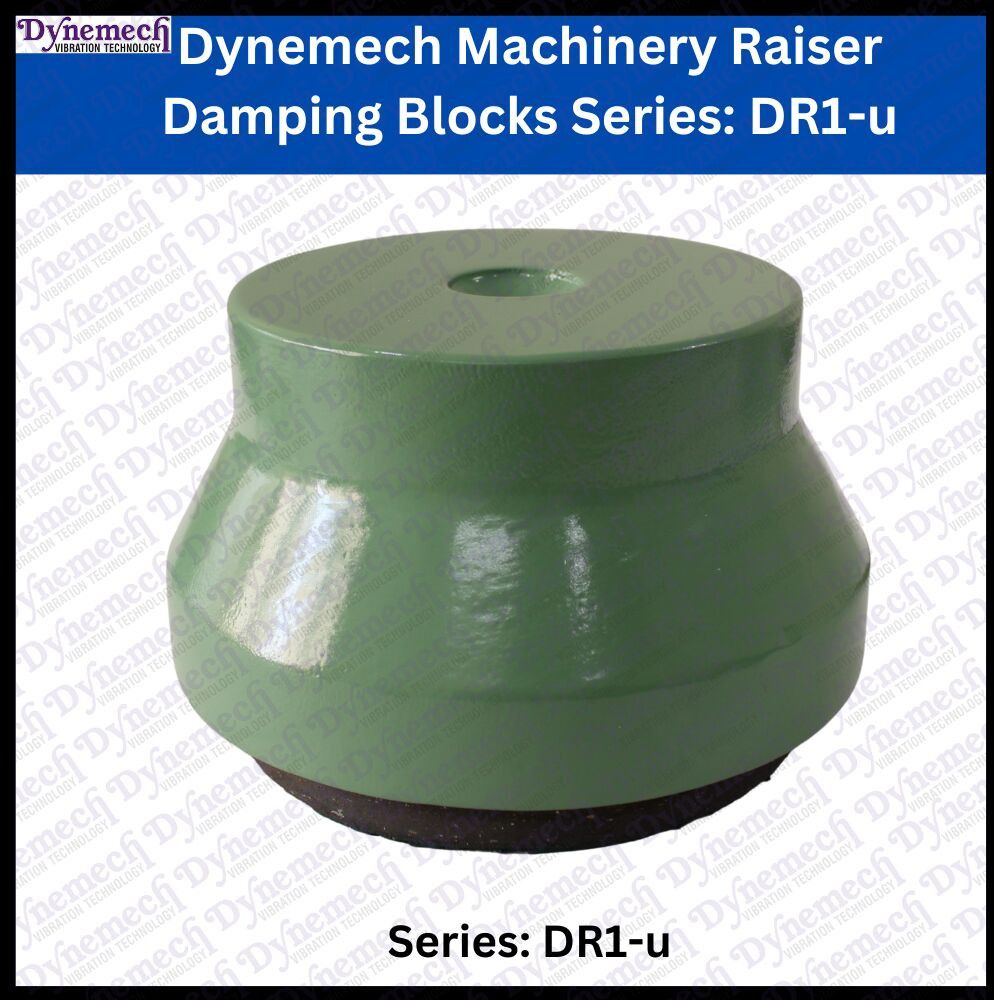

Dynemech Machinery Raiser Damping Block Mounts Series DR1 U

Dynemech Machinery Raiser Damping Blocks Series DR1-u: are suitable for machines having tapped hole in the base.The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base. Applications: Compressors, Tool Room Machines, Plastic injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Model: DR1-u

Load Kg/pc: 350 Kg/pc to 2200 Kg/pc

Dia D(mm): (109 to 270)mm

Height: (100/150 to 110/160)mm Coeff. of Friction against Concrete: 0.9 to 0.8 Natural Frequency at Max. Load (Hz): (18 to 8)Hz d (mm): (87 to 215)mm

Hardness: (90 to 92)mm

Material: Cast Iron Colour: Green

Surface Finishing: Painted

Temperature: (-20 to +70°C) Weight: 20 Kgs Delivery Time: 1-2 Days No. of Boxes: 1

Box Dimension: 13"X8"X7" Production Capacity: 50 Pcs/Per Day

Note- GST and Freight Charges are not included.
