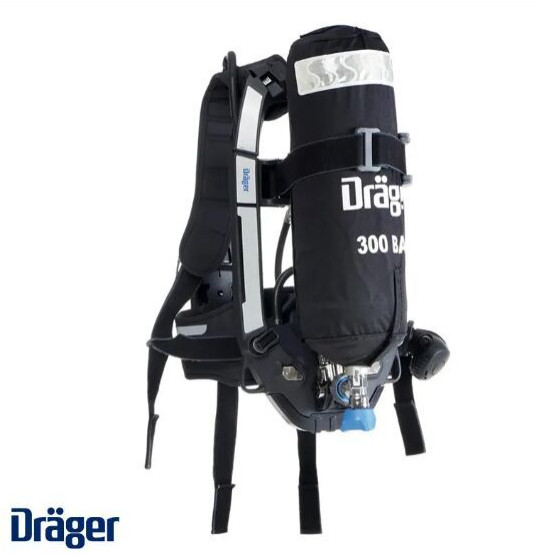

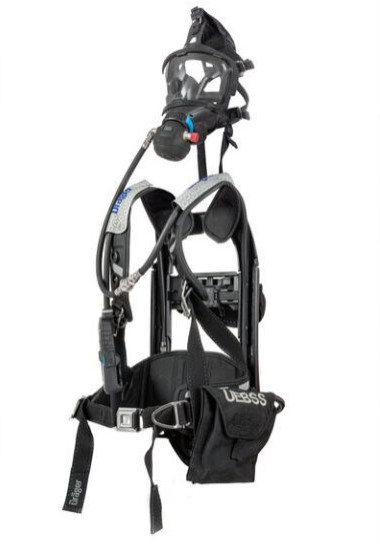

Contact SupplierSCBA Set- Dragger
Application: Firefighting
Adjustability: Pivoting & sliding waist belt, height adjustment (optional)
Visibility & Safety: Reflective straps (backplate, shoulder, waist), optional buddy lights (180°/360°)
Monitoring System:
Mechanical gauge
Mechanical gauge with transmitting function
Digital gauge
Automatically activated PASS (optional)
Head-Up Display (HUD) (optional)
Compatible with Dräger FireGround (optional)
Technical Data
Weight (backplate & harness): 4.62 Kg
Input Pressure: 0 - 300 bar

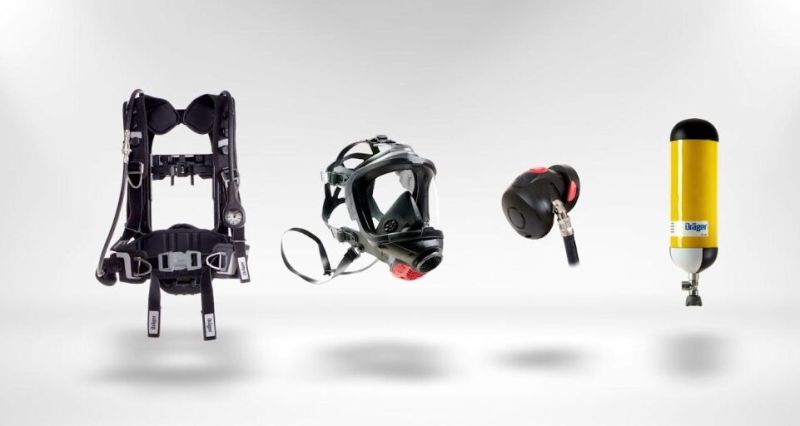

Breathing Apparatus Components
Lung Demand Valves: Yes
Compressed Air Cylinders:
One-cylinder configuration
Two-cylinder configuration
Twin-pack configuration
Full Face Masks:
FPS 7000
Panorama Nova
Communication Systems
Compatible Models:
FPS-5000-COM
FPS-7000-COM
Additional Features
PSS Safety Belt: Yes
QuickConnect: Optional
Additional Medium Pressure (Rescue) Hoses: Optional
Charge-Air Connection: Optional
Approvals & Certifications
EN 137:2006 (Type 2): ✓
Aus/NZ: ✓
