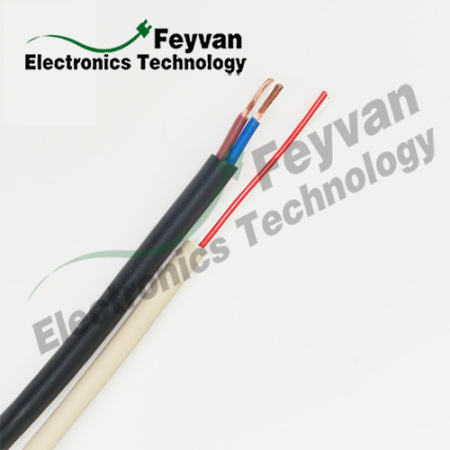

Drain Wire Custom XLPE Cable

Feyvan Electronics supplies custom halogen free multicore electrical wire with XLPE & PE insulated and XLPE & FRPE jacketed. We can satisfy your unique end-use requirements by adding AL-mylar, shielding and cotton and PVC strip fillers etc.  Rated temperature range can be changed by using different PE material compounds. XLPE insulation material also with excellent heat resistance and mechanical strength is more steady, low dielectric loss than PVC insulation material. It has the properties of excellent electrical performance, aging resistance, chemical corrosion and strong load capacity as well. Applications e.g. general internal wiring of electronic appliance and electrical equipment lead wire of motor, lamp, high-performance appliance and equipment where rated temperature not exceeding 150℃. Technical Date: - Rated temperature: 105℃,125℃ & 150℃ optional - Rated voltage: 300V & 600V optional - Reference standard: UL subject 758, UL1581 - Conductor: 30-10AWG tinned or bare, stranded or solid copper - Insulation: XLPE & PE with multiple colors to choose - Jacket: XLPE & FRPE with multiple colors to choose, fillers optional - Uniform insulation thickness to ensure easy stripping and cutting - Passed UL VW-1, cUL FT1 and JQA F-mark flame test Part Name Conductor Construction Drain Wire Insulation XLPE Jacket XLPE Thickness mm Diameter mm Thickness
