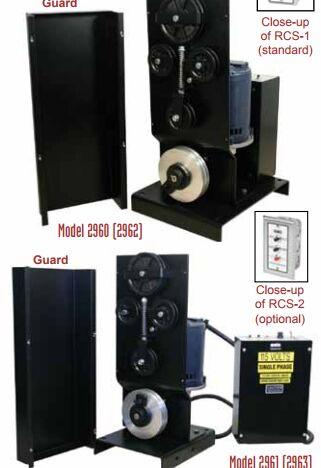

DRAW CURTAIN MACHINES

Specifically designed for projects requiring curtain machines
which can fit in narrow pockets, these machines are capable of
operating acoustic curtain track systems up to 75’ in length (layout
dependant) and curtains weighing up to 500 pounds. The control
box for these machines is provided either separately, tethered to
the machine with 6’ of flexible conduit, or mounted to the machine
base. Operation is stopstartreverse from any point of travel.
OUTSTANDING FEATURES:
N-GROOVE WHEEL DRIVE
Machined with double N-grooves, the drive wheel when used in
conjunction with the machine’s idler wheels and center tension
wheel, provides a near slip-free operation.CONTROL SWITCHES
Three-button type marked Open, Close and Stop. Any number
of remote control stations can be used with this model machine.
Machine is supplied with a set of controls on the control
box and a set to be used as remote control station.
CONTROL BOX
Supplied either tethered, but not mounted to the machine for
placement up to 6’ away on an adjacent wall, or rigidly mounted
to the machine’s base. Tethered control boxes allow you
to locate the control box in a readily accessible area when
the machine is located in a pocket or inaccessible area. This
makes maintenance and troubleshooting easier in the field. If
accessibility is not an issue, opt for the models with the control
box rigidly mounted to the machine’s base.
LIMIT SWITCHES
Track mounted limit switches are used to provide positive and
accurate stops. Two limits are provided with the machine. Limit
switch voltage is 24 VAC. Master carrier with tripping dog included.
MANUAL OVERRIDE
The machine is provided with a driving dog which allows the
user to disengage the drive wheel in the event of a power
failure and easily operate the system manually. When power
is restored the driving dog is simply re-engaged. Since this
model machine utilizes track mounted limit switches, the limit
positions will not be affected by the re-engagement position of
the drive wheel.
