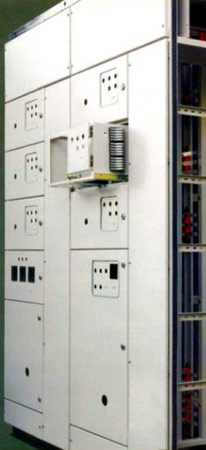

Drawout Type Panel Board

Listing ID #187457

We manufacture a range of Drawout Type Panel Boards that are well designed and manufactured by experienced Engineers having 30 years practical experience in design and development of drawout type switchboards. Draw out equipments meet the toughest manufacturing / quality standards and are subjected to various manufacturing process to ensure reliability, safety, interchangeability and ruggedness.These Draw out Type Panel Boards are high on efficiency as we manufacture them using high grade raw materials. These Drawout Type Panel Boards are durable therefore can be used for years together with minimum maintenance. Working Process Details After the satisfactory reports, the equipments are packed for shipments to avoid any damages during transportation. The necessary as built drawings technical data and test certificates are provided along with the dispatch documents Training / After Sales Services After Sales Service Team provide services as and when required necessary review meetings for knowledge sharing, training etc are held between all the departments for ca/pa actions to avoid repetitions and continuous improvement in services at all stages Features

• Ensure minimum operational down time,
• High degree of operating personnel safety and dependability
• Power as well as contril contacts are selt alogning type
• There are forur distinct service test isolate and fully with drawn position
• In all positions the withdrawl module has got locking facilities
• Gravity operated shutters are provided to cover live bus bars when modules are removed,
• Draw out power contacts are type tested at cpri for 50, ka for 1 sec with back up protections,
• Tested to establish continous current carrying capacity
• Volatge drop between male and female contacats tested at cprl.
• Di electirc properties are checked for any leakage thourgh support on which they are mounted
• Drawout contacts are tested for mechanical endurance test to prove its life. these are available from 32 amp to 630 amp

• Cement
• Power
• Steel
• Chemical
