Z110y dth drilling rig
hydraulic drilling rig(am-d100y)(am-d100ya2)mainly used in opening mining,hydro-power plant,electric power stations

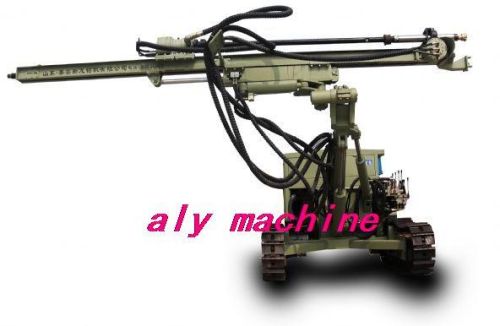

crawler hydraulic drilling rig(am-z110y)
have the character of low energy consumption,high efficiency.the operating system has been implemented by hydto-system.due to the reasonable design it has more stronger wrench rotation of the drilling and high efficiency in operation.
Technical parameter
hole diameter:90-130mm
dimension:5200mm*2060mm*2020mm
hole depth:30m
walking speed:2km/h
feed stroke:3000mm
climb ability:25 degree
working pressure:0.7-1.6mpa
air consumption:10-12m3/min
motor powewr:33kw
slide swing:left 35 right 10
guide compensation:900mm
