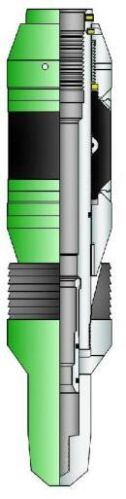

Drillable Cement Retainer

Listing ID #4388503

Get Latest Price

Usage:Oil Drilling Industry
Choices In Setting:Wireline, Mechanical or Hydraulic.
Model:WC-WLCR [Wire line set] &WC-MCR [Mechanical set]
Pressure:10,000 psi
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Model: WC-WLCR [Wire line set] &WC-MCR [Mechanical set]
Temperature: 400 F
Brand: Wellcare
Choices In Setting: Wireline, Mechanical or Hydraulic.
Pressure: 10,000 psi
Usage: Oil Drilling Industry

These are field-proven modular designed high performance drillable bridge plugs, commonly used for zonal isolation during stimulation or cementing jobs, or for temporary and permanent abandonments. This can easily be converted to a Cement Retainer. A modified version of this Bridge Plug is available for use primarily in gas well applications. Simple design allows the upper portion of the body and the bridging plug to be drilled out, generating pressure equalization across the tool before drilling out the upper slips. Cement retainer ideal for most remedial cementing applications. It is designed to function as a drillable squeeze packer which after cementing acts as a plug trapping to squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer. Changing the upper slip enable the bridge plug to be set mechanically or on a wireline setting tool assembly. It is easily converted to a cement retainer.

Features/Benefits:

• Choices in setting such as wireline, mechanical or hydraulic.

• High Performance - 10,000 psi and 400 F.

• Superior running characteristic i.e. enormous annulus clearance for faster & safer run-in.

• With simple kit Cement Retainer easily converted to bridge plug.

• Simple conversion to cement retainer, reducing inventory.

• Body Lock Ring: Traps setting force in element to maintain pack-off during pressure reversals.

• The rotationally locked, cast-iron components enable a fast & easy drill out to save rig time.

• Easily PDC drillable.

Applications:

• Temporary and permanent zone isolation

• Well abandonment

• Cementing

• Stimulation

Technical Specification

Casing/Tubing				Product			Wireline Adapter Kit Model: WC WLCR,MCR
Size	Wt	ID Min.	ID Max.	Size	Max OD	Bore	Size
inch	lbs/ft	inch	inch		inch	inch
4 1/2	9.5-16.6	3.826	4.09	X1	3.593	1.345	X1-Y1
5	23.2-24.2
5 1/2	36.4
5	11.5-20.8	4.154	4.56	Y1	3.937		X1-Y1
5 1/2	26.0-32.3
	14-23	4.58	5.044	X2	4.312		X2
6	18-26	5.14	5.552	Y2	4.937		Y2
7	49.5
6 5/8	20.32	5.595	6.135	X3	5.41	2	X3
7	32-44
	17-35	6	6.538	Y3	5.687		Y3
7 5/8	45.3
	20-39	6.625	7.125	X4	6.312		X4
7 3/4	46.1
8 5/8	24-49	7.511	8.097	X5	7.125		X5
8 3/4	49.7
9 5/8	29.3-58.4	8.435	9.063	X6	8.125		X6
9 3/4	59.2
9 7/8	62.8
10 3/4	60.7-81	9.25	9.66	Y6	9		Y6
	32.75-60.7	9.66	10.192	X7	9.437		X7
11 3/4	60.0-83.0	10.192	10.772	Y7	9.937		Y7
	42-60	10.72	11.15	X8	10.437		X8
13 3/8	85-102	11.633	12.159	Y8	11.562		Y8
	48-80.7	12.175	12.715	X9	12		X9
13 1/2	81.4
13 5/8	88.2
16	109.0-146.0	14	14.75	X11	13.915		X11
	55.0-84.0	14.7	15.4	Y11	14.585		Y11
