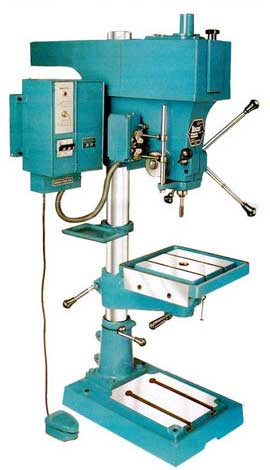

Drilling & Tapping Machine

Our company is a prominent Drilling & Tapping Machine Manufacturer. The Drilling & Tapping Machine offered by us is made from excellent quality basic materials including Metal Components and Metal Fasteners. Developed as per the current market requirements, these Drilling & Tapping Machines are chiefly designed with robust composition and easy to operate features. Our Drilling & Tapping Machines find great application in industries like Mechanical, Machine Development, Construction, etc. The Drilling & Tapping Machines offered by us are quality tested and ensures high performance.
Salient Features
Model S-Itco DM-TM is a heavy duty machine having drilling capacity in Steel 20mm, CI 22mm andTapping capacity in Steel 12mm, CI 16mm and has 8 spindle speedsHighly versatile for Tapping, Drilling, Reaming and screwing at preset depthSimple to install, simple to operate, no extra skill requiredDual operation of Tapping and Drilling without any extra attachment. The mere flick of switch sets the machine from Tapping to Drilling and vice-versaAutomatic reversal of spindle at preset depth and changes the direction of spindle automatically back to normalSimple back gear arrangement facilitates 8 spindle speeds to suit the cutting speedsEmergency reversing foot switches to avoid tap breakageBeing an electrical switch gear unit no wear and tear and hence no maintenance is requiredMachine Accuracy as per IS 2425
Technical Specifications
Drilling capacity in Steel20mm Drilling Capacity in Cast Iron22mm Tapping Capacity in Steel12Tapping Capacity in Cast Iron16Morse Taper in SpindleMT-2Spindle Travel125Pillar Diameter72Piller Length1065Distance BTW Centre of Spindle & Pillar Front206Max Distance BTW Spindle & Table410Max Distance BTW Spindle & Base785Table Working SpaceRound - Ø 325Square - 280 x 280Base Working Surface (Machined)265 x 290Overall Size of Base571 x 310No of spindle speeds8Range of spindle speeds (rpm)80-150-250-430-510-920-1590-2850 V BeltA 45 Motor1H.P, 1400rpm, 3 Phase Net Weight120kgSpace Occupied (LxBxH) 710 x 530 x 1350
