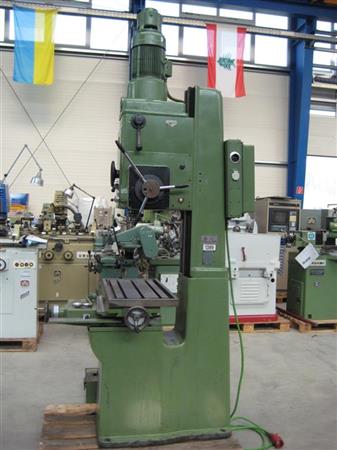

Drilling and Milling Machine

we are offering drilling and milling machine.
stock-no. 1106-bo248
type of machine drilling and milling mc
make webo
type gradua 30
year of manufacture ca. 1975
type of control konventionell
storage location ex store jena
country of origin germany
technical details
bore capacity in steel (diameter) 5 - 30 mm
x-travel 450 mm
y-travel 380 mm
total power requirement 1,4 2,2 kw
weight of the machine ca. 1.100 kg
dimensions of the machine ca. 1.000 x 1.400 x 2.900 m
gear box 85 - 2.000 umin
spindle diameter 72 mm
bore depth 700 mm
throat 300 mm
spindle taper mt 3
t-slots 3 x 1625 mm
table-size 700 x 300 mm
spindle turning speed range 8517025035547571010002000 umin
motor speeds: 7051425
