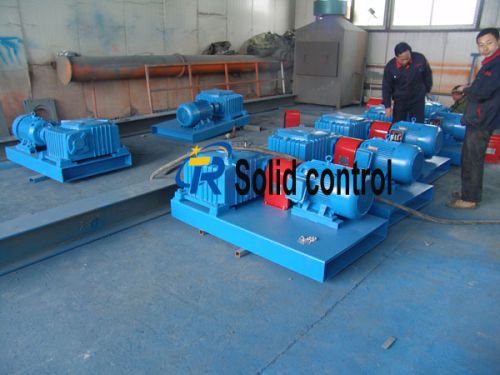

Drilling Fluid Mud Agitator

We are offering drilling fluid mud agitator.
drilling fluid mud agitator, less than 5.5 kw drilling mud agitator adopts the blender cycloid speed reducer, and drilling fluid mud agitator is applied to the drug liquids mixing tank. This drilling fluid mud agitator has the advantage of compact structure so it occupies small area. More than 7.5 kw drilling fluid mud agitator uses the turbo and worm gear speed reducer, with the large torque transmission, the revolution is steady,drilling fluid mud agitator works reliablely and has great merit.the tr drilling fluid mud agitator is an important components for tr solids control drilling fluids processing system.
features
1 typical c face motor installation
2 small footprint without skid
3 helical-bevel gearbox
4 motor can be horizontal or vertical
benefits
1 longer usable life on motor and gear box
2 require less space also easy to handle
3 high efficiency, low noise, low operating temperature
4 adaptable for different application
mud agitator can be used widely in various applications. Including drilling mud mixture, chemical agitating, food or beverage, etc. Driling fluid agitator will be mounted on mud tanks or set right overmud pit. The drilling fluid agitator will help mix subject with powerful rate. To select mud agitator should know the processed subject, the tank dimension (including length, width, height). Then we’ll get proper horse power, shaft length and impeller type.
stucture
mud agitator is composed of explosion-proof motor, speed reducer, motor base & vane. The motor & speed reducer, speeder reducer & impeller shaft are both connected by rigid coupling. The impeller is welded by four vanes.
tr solids control as a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and drilling fluid agitator is one of them. To keep both the mud uniformity and the suspension of solids, the drilling mud agitator is used to agitate the mud consecutively and reliably.this mud agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Due to the simplex turbine decelerator, this product is featured by compact construction, light weight, balanced transmission, low noise, high efficiency of transmission and strong agitating power. Therefore,drilling fluid mud agitator is a reliable product in the solids control system.
