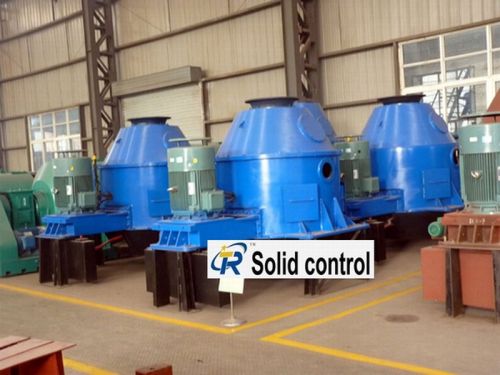

Drilling Fluid Vertical Cutting Dryer

We are offering drilling fluid vertical cutting dryer.
vertical cutting dryer is designed to reduce and recover base fluid from a variety of feed slurries.
vertical cutting dryer uses centrifugal force to dry driling solid in oil or synthetic base fluids. liquid is forced through the screen bowl openings, while “dry” solids are extracted by the angled flights attached to the cone, which rotate slightly slower than the bowl. Tungsten carbide protects the flights from abrasive solids and ensures long operational life. This aids in maintaining a constant gap between the scroll and screen bowl, which is crucial for proper operation.
contact information:
email: www.trsyjx@gmail.com
julinliang@trsolidcontrol.cn
msn : tr.solid.control@msn.cn
mobile phone: 8615229262604
company website:www.trsolidcontrol.com
vertical cutting dryer could be regarded as a vertical centrifuge, the discharged cuttings transfered by the auger get into the vertical cutting dryer from the opening on the top, under the function of centrifugal force produced by rotation of the screen module. Liquid flow out from the opening at the flank side while the solids discharged out from the outlet at the bottom of the cutting dryer. The discharged solids water content is around 30%, that means there is no flowing water, so it could be transported easily.
