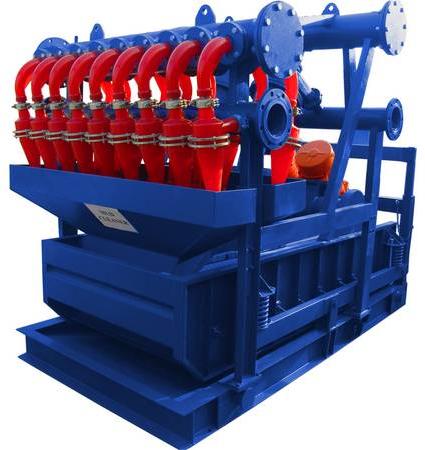

Drilling Fluids Solids Control, Mud Cleaner

We are offering drilling fluids solids control mud cleaner the tr solid control mud cleaner combines hydrocyclones and a vibratory screen to provide liquid/solids separation at a high flow rate. As a first stage, the slurry is processed through the hydrocyclones, the cleaned liquid is carried out the hydrocyclone overflow and the concentrated underflow (solids) are deposited on a vibratory screen deck. The screen deck imparts a rapid linear motion, producing an energy force that dewaters and conveys the solids to the discharge end of the screen. The screened liquid flows into a collection pan located below the screen deck. The cleaned liquid overflow from the hydrocyclones and the screened liquid may be blended together.the mud cleaner is designed to clean drilling fluids to 10 microns. Compact, self-contained, skid mounted units are offered with double or single deck drying shaker, 2-stage hydrocyclone separation to dewater drill cuttings. Standard units have flows from 250 - 1200 gpm. Our speciality is custom-built systems to your specifications
1. Environmentally efficient – the tr mud cleaner provides efficient removal of sand and silt particles larger than 20 microns, and some as small as 15 microns. Removing and drying drilled solids helps meet environmental regulations by minimizing waste generated and reducing disposal cost.
2. High performance – processing capacity of 1,000 gpm with the 2-12 desander and 900 gpm with the desilter concentrates solids onto a classification shaker
3. Versatile – the mud cleaner can be operated with the 2-12 desander, desilter or both to process weighted or unweighted fluid systems.
4. Extends equipment life – the mud cleaner helps minimize maintenance, repair and replacement of downstream equipment.
5. Reduces operating cost – the mud cleaner reduces sand and silt-size particles and saves liquid, thus reducing mud cost, chances of stuck pipe and lost circulation and improving rate of penetration.
6. Reduces disposal cost – the mud cleaner minimizes waste generated thus reducing disposal cost.
